51 47 101 Removing And Installing/Replacing Luggage Compartment Floor Trim Panel (JCW GP)

51 47 101 Removing And Installing/Replacing Luggage Compartment Floor Trim Panel (JCW GP)

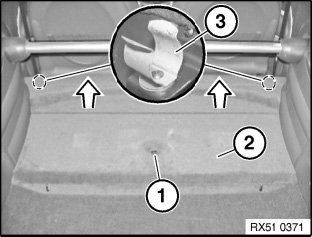

Release lock(1).
Unclip front luggage compartment floor trim panel (2) upwards from retainers (3) and remove.

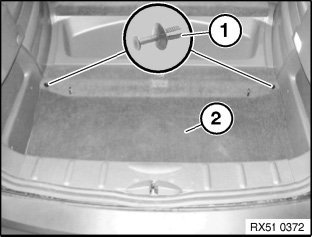

Release clips (1).
Feed out rear luggage compartment floor trim panel (2).
