51 44 011 Removing And Installing/Replacing Headliner (With Slide/Tilt Sunroof)

51 44 011 Removing And Installing/Replacing Headliner (with Slide/tilt Sunroof)

Necessary preliminary tasks:
- Remove both front seats
- Remove both trims for roof pillars (A-pillar) at front
- Remove both panels for door pillars (top)
- Remove both panels for roof pillars at rear
- Remove interior rear-view mirror
- Remove both sun visors and counter-supports
- Remove clock
- Remove front roofliner trim
- Remove rear roofliner trim
- Remove complete ceiling light
- Remove both rear grab handles
- Remove ultrasonic module

Important: Two persons are needed to remove the roofliner from the car.

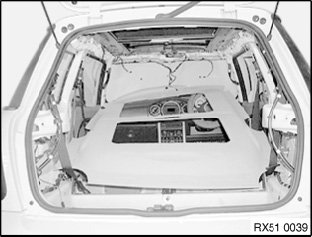

Detach roofliner and remove through passenger door.
