61 31 059 - Removing and installing/replacing switch block in instrument panel

Removing And Installing/Replacing Fascia Switch Module







Remove front centre console finishers.

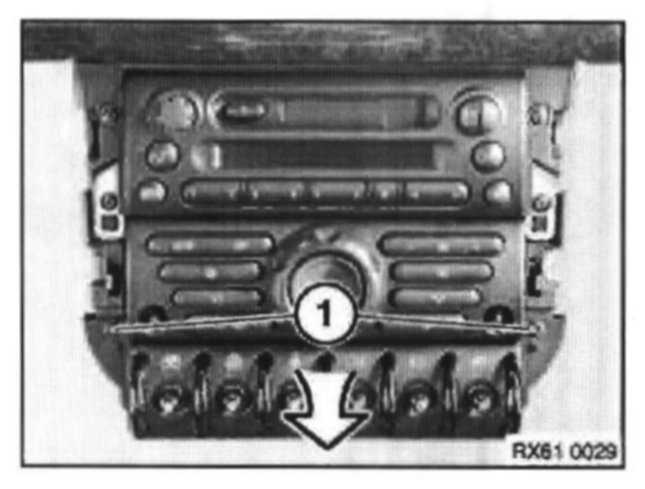

Remove screws (1) and pull module forwards to release rear securing clips.







Disconnect switch module connector


CAUTION!
If the vehicle is fitted with telephone preparation option kit the connector is the same as the fascia switch module connector. Ensure the correct connector is refitted.
