51 16 217 Replacing Rear Centre Console

51 16 217 Replacing Rear Centre Console

Necessary preliminary tasks:
- Remove rear centre console

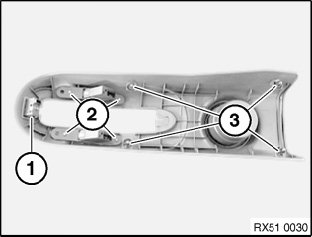

Build date up to 07/2004:
Remove RDW switch (1).
Release screws (2) securing switches for front seat heating (depending on equipment specification).
Remove clips (3) from console.

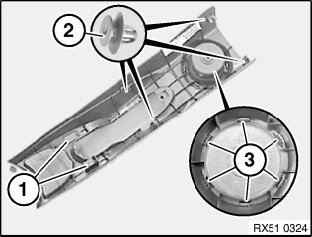

Build date from 07/2004:
Depending on equipment specification, remove switches (1) or trims (1).
Remove clips (2) from console.
Release catches (3) on trim ring and remove trim ring.

Installation: If necessary, replace clips (2).

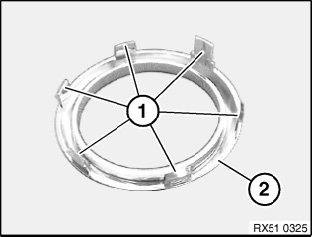

Installation: Catches (1) on trim ring (2) must not be damaged.
