51 16 206 Removing and Installing / Replacing Centre Armrest

51 16 206 Removing And Installing/Replacing Centre Armrest

Necessary preliminary tasks:
- Remove rear storage compartment

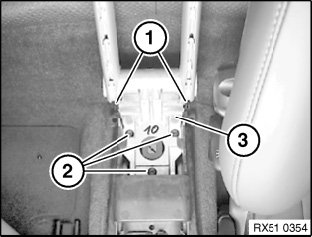

Release screws (1) at sides.
Release screws (2) and lift out centre armrest (3).

5AZ Centre armrest to bracket 4.5 Nm







Replacement:
- Remove cover for centre armrest

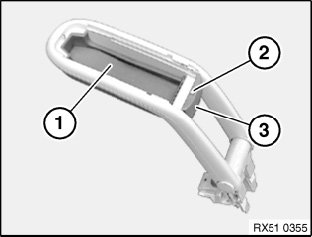

- Remove storage tray (1).
- Release screw (2) and remove cover (3).
