51 16 202 Removing and Installing/Replacing Front Cup Holder

51 16 202 Removing And Installing/Replacing Front Cup Holder

Necessary preliminary tasks:
- Remove front center console

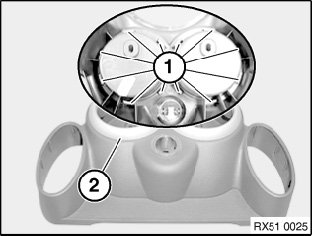

Release catches (1) on underside of center console.
Remove cup holder trim ring (2).

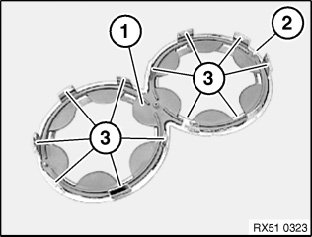

Remove cup holder insert (1) from cup holder trim ring (2).

Installation: Catches (3) on cup holder trim ring (2) must not be damaged.
