51 16 201 Replacing Front Centre Console

51 16 201 Replacing Front Centre Console

Necessary preliminary tasks:
- Remove front centre console
- Remove front cup holder







Remove on-board socket/cigarette lighter.

Note: Inner section of on-board socket/cigarette lighter must be removed before lighting ring is removed.

Installation:

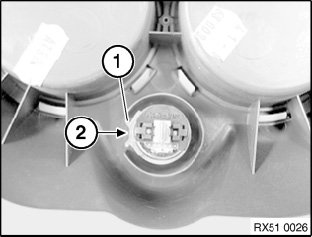

When installing lighting ring (1), make sure bulb holder is seated in opening (2) on underside of centre console.
