Rear

Replacing Rear Axle Carrier
Remove exhaust.

R53 only:
Release rear half of battery main cable.

R50 and R53:
Remove fuel tank.

Refer to bleeding brakes:
ABS/ASC+T.
ABS/DSC.

Adjust handbrake.

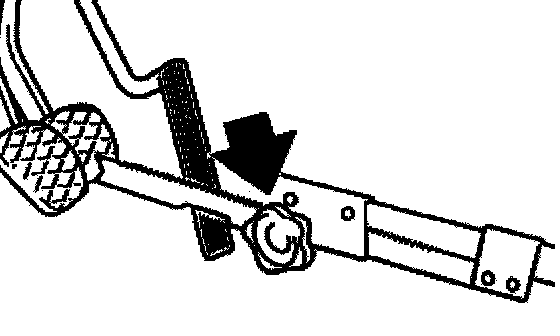

Apply pedal prop and depress brake pedal slightly. This will prevent brake fluid from escaping from expansion tank after brake pipes have been disconnected (which would enable air to enter the braking system).

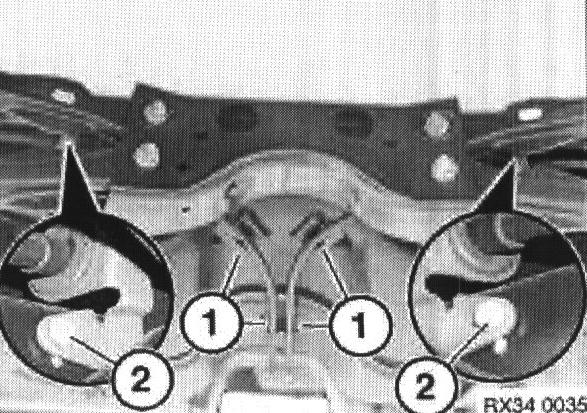

Disconnect brake pipes from hose (1) and subframe.
Rear brake pipe to hose connection 14 Nm

Release ABS sensor leads from subframe fixings.

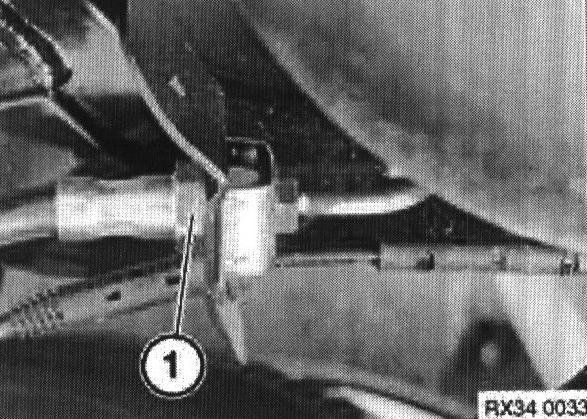

Release cables from fuel tank (1).

Remove bolts securing handbrake cable to subframe (2) and remove cable from subframe.
Handbrake to subframe
M6 8.5 Nm





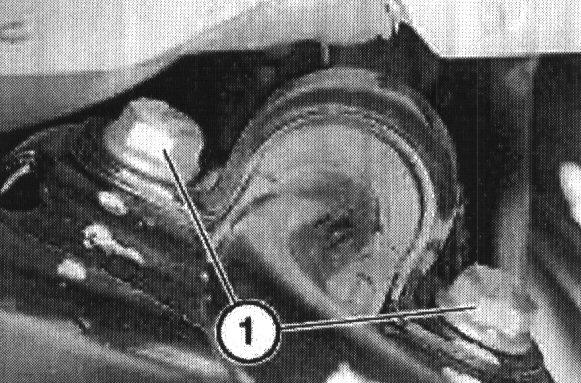

Remove bolts (1) securing anti-roll bar to subframe.
Anti-roll bar clamps to subframe
M8 19 Nm

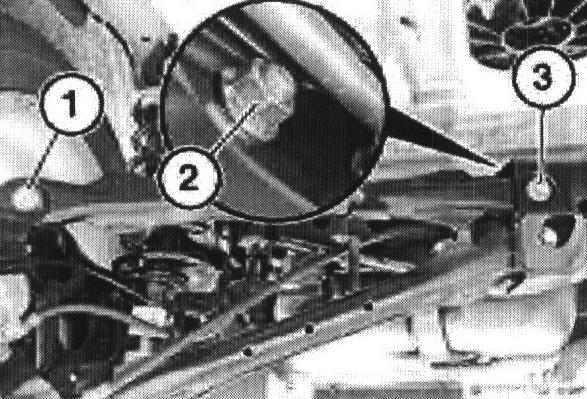

Remove bolt securing the lateral link to trailing arm (1).
Lateral link to trailing arm
M12 x 1.5 64 bolt 100 Nm

Remove nut (2) and bolt (3) securing link to subframe.

Remove links.
Lateral link to subframe
M12 x 1.5 64 bolt 100 Nm

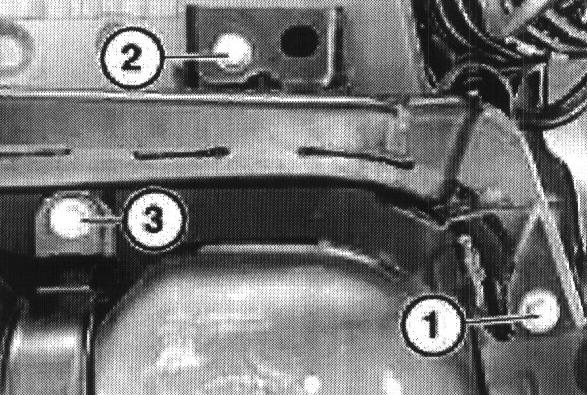

Support fuel tank and remove two rear fuel tank fixing bolts (3).

Support the subframe and remove the outer bolts (1) and inner bolts (2) securing it to the body.

Remove subframe.
Subframe to body (outer)
M12 x 1.5 132 100 Nm
Subframe to body (inner)
M12 x 1.5 66 100 Nm
Fuel filler tube to body nut
M6 5 Nm





Install hint:
Fit brake pipe clips (1) to new subframe.
