51 14 012 - Removing and installing/replacing rear MINI badge

51 14 012 Removing And Installing/Replacing Rear MINI Badge

Special tools required:
- 00 9 322

Important: The Instructions on component cementing with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.







Removing badge:

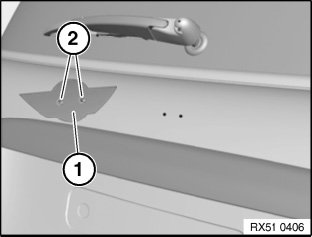

Heat MINI badge (1) with hot air blower and carefully lever out with special tool 00 9 322.







Fitting badge:
Pull liner* off adhesive tape (1), position badge over guide pins (2) on rear lid and press down firmly.

* Liner is the protective film on a new badge.
