Removing and Installing/Replacing Trim For Upper Trunk Lid (Tailgate)



51 49 006 Removing And Installing/Replacing Trim For Upper Trunk Lid (Tailgate)

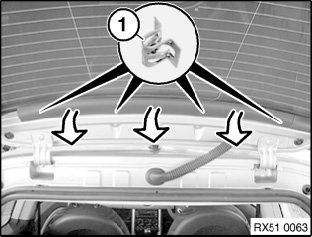

Remove left or right trim for rear window frame.







Release trim and remove.
If necessary, replace clips (1).
