Hood Insulator / Pad: Service and Repair

51 48 001 Removing And Installing/Replacing Engine Hood/bonnet Sound Insulation







COOPER S only:

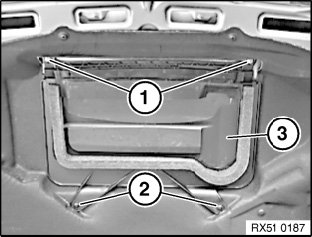

Unscrew nuts (1) and remove screws (2) securing air intake duct (3) to the engine hood/bonnet and remove the duct.







All models:

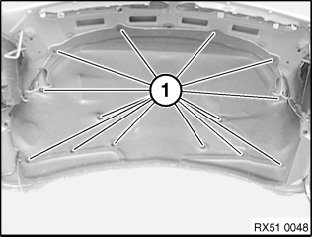

Remove screw rivets (1) from sound insulation.
Remove sound insulation.
