Removing and Installing Flap For Fuel Filler Neck

41 63 000 Removing And Installing Flap For Fuel Filler Neck







MINI ONE and MINI COOPER models:
Open filler flap.

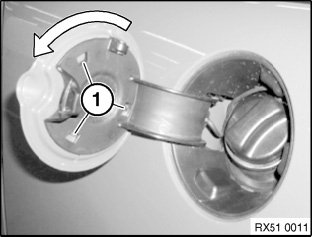

Release filler flap from cover plate. To do so, turn filler flap clockwise to release retaining lugs (1).







MINI COOPERS:
Open filler flap.

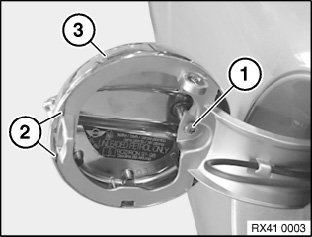

Release screw (1) securing chrome plate to cover plate.
Remove cover plate (3).

Installation: Before inserting screw, make sure that plate/filler flap guide slot (2) is correctly located.

Important: Do not allow the filler flap to knock against the side section - this could damage the paintwork.
