Rear Bumper Reinforcement: Service and Repair

51 12 050 Removing And Installing/Replacing Carrier For Rear Bumper Trim

Necessary preliminary tasks:
- Remove rear bumpers

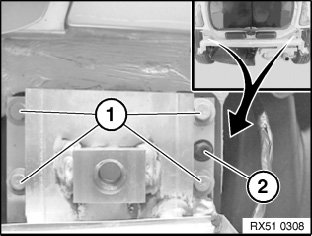

Release bolts (1) and nut (2) on left/right.

1AZ Carrier to body
M8 x 25 12.5 Nm

Remove carrier.
