Parking Assist Control Module: Service and Repair

Removing And Installing/Replacing Control Unit (Park Distance Control)

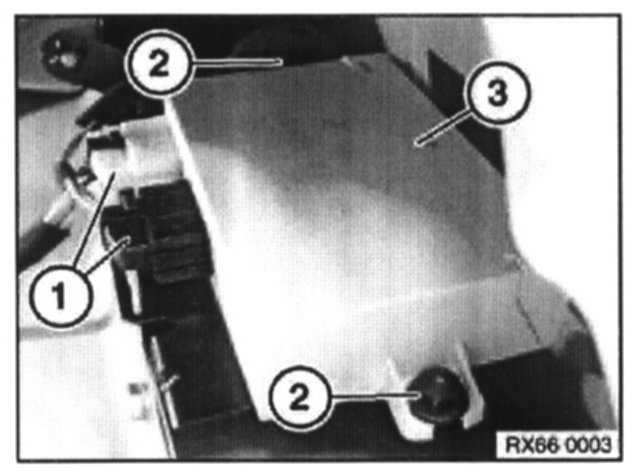

Remove right hand tail light.







Disconnect connectors (1).
Remove nuts (2) securing module to mounting bracket.
Remove control module (3).
