Alarm System Transponder: Service and Repair

Removing And Installing/Replacing Ring Antenna Of Electronic Immobilizer

Special tools required:
- 61 3 300







Remove ignition switch rubber.

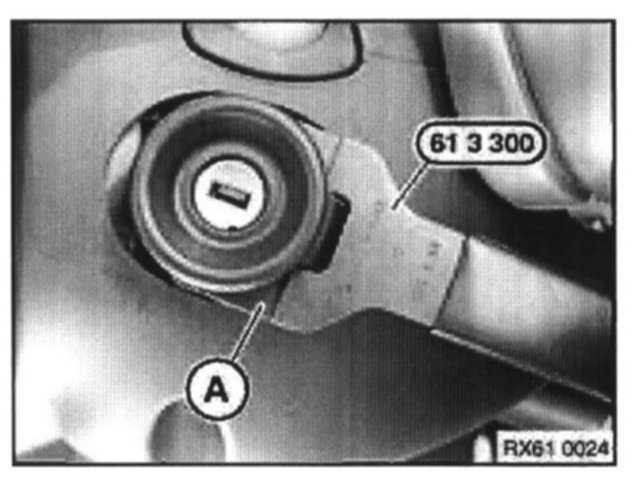

Using special tool 61 3 300 with flattened end (A) facing ring antenna, lever out ring antenna.
Disconnect connector.
