Measuring Ride-Level Height of Vehicle, JOHN COOPER WORKS

33 53 ... - Measuring ride-level height of vehicle





Necessary preliminary tasks:
- Move vehicle into normal position Normal Position

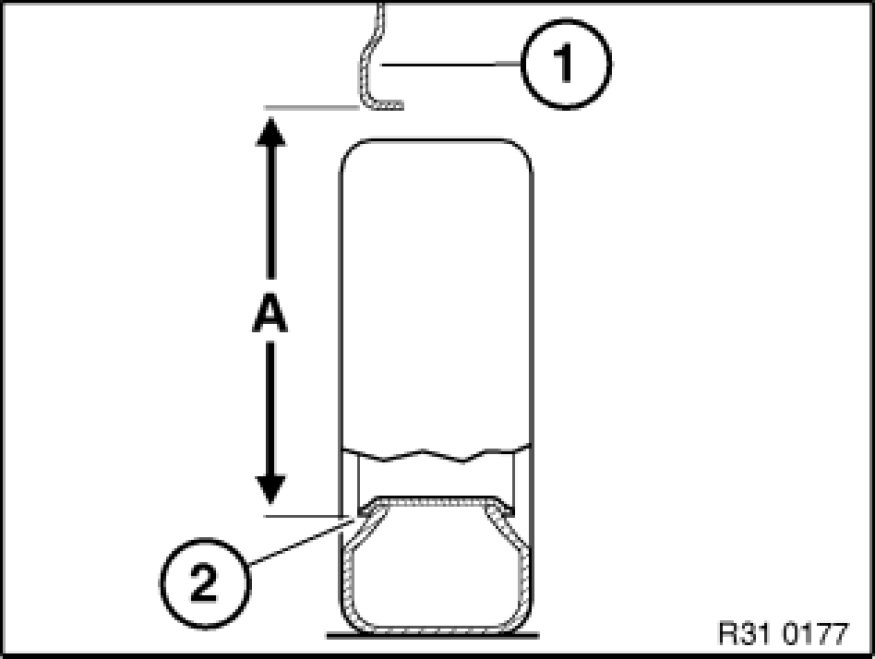

Determine actual ride level (A).

Measurement from wheel arch lower edge (1) to rim flange (2) at height of wheel center.

If determined value deviates from specified target value:

Refer to Technical Data Rear Axle.
