Adjusting Toe-In and Camber on Front Axle

32 00 601 - Adjusting toe-in on front axle





Note:
Refer to Troubleshooting if wheel camber is not in the specified target range.





Adjusting toe-in/toe-differential angle: Move wheels and steering gear to straight-ahead position.

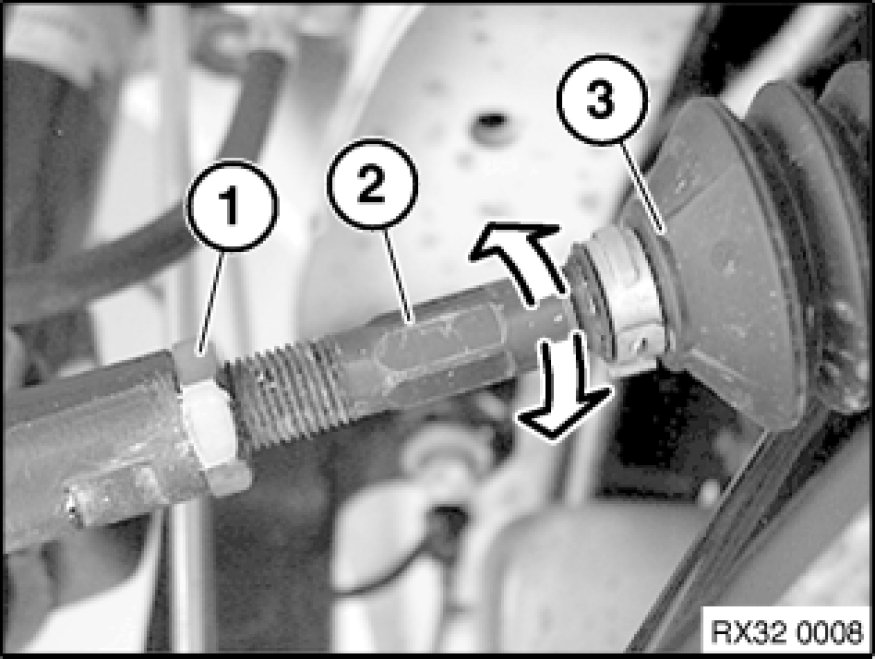

Release lock nut (1).
Adjust toe-in to specified value by turning tie rod at hexagon (2).

Installation:
Make sure that gaiter (3) of tie rod does not turn as well.





Important!

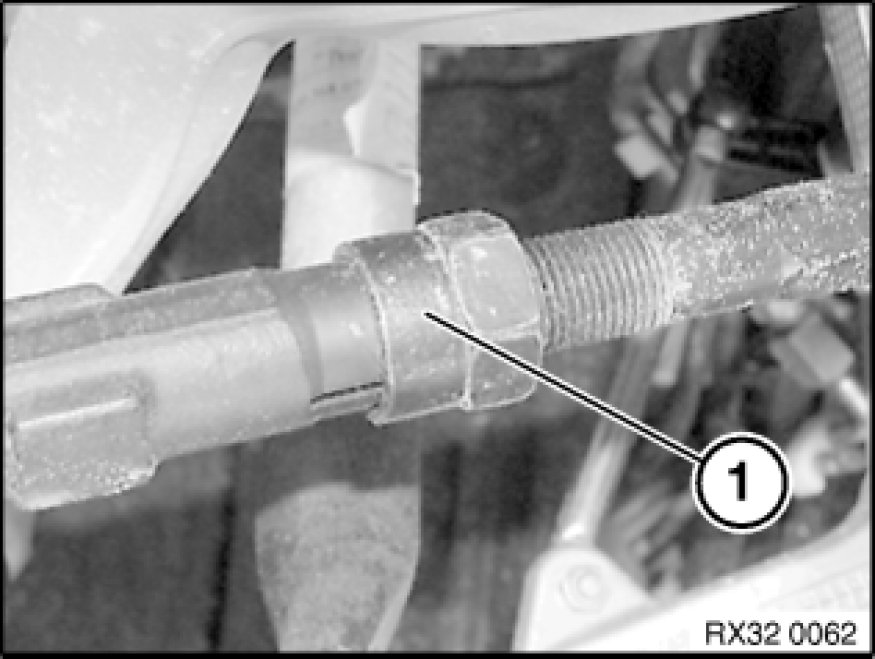

Tie rods with lock screw connection:
Tightening torque 32 21 2AZ [1][2]Specifications.





Important!

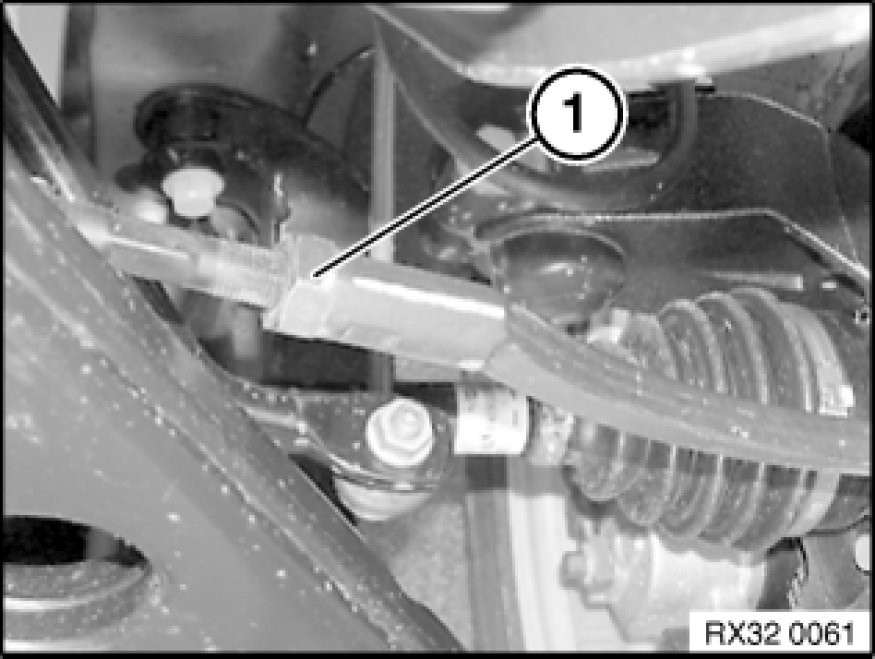

Tie rods with clamping ring screw connection:
Tightening torque 32 21 3AZ [1][2]Specifications.
