Home >> Mini >> 2006 >> Cooper Convertible (R52) L4-1.6L (W10) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X0 >> X01098 Adapter 616035, Storage Location D111

X01098 Adapter 616035, Storage Location D111

Connector View

X01098 Component Connector (10-Pin, Blue)

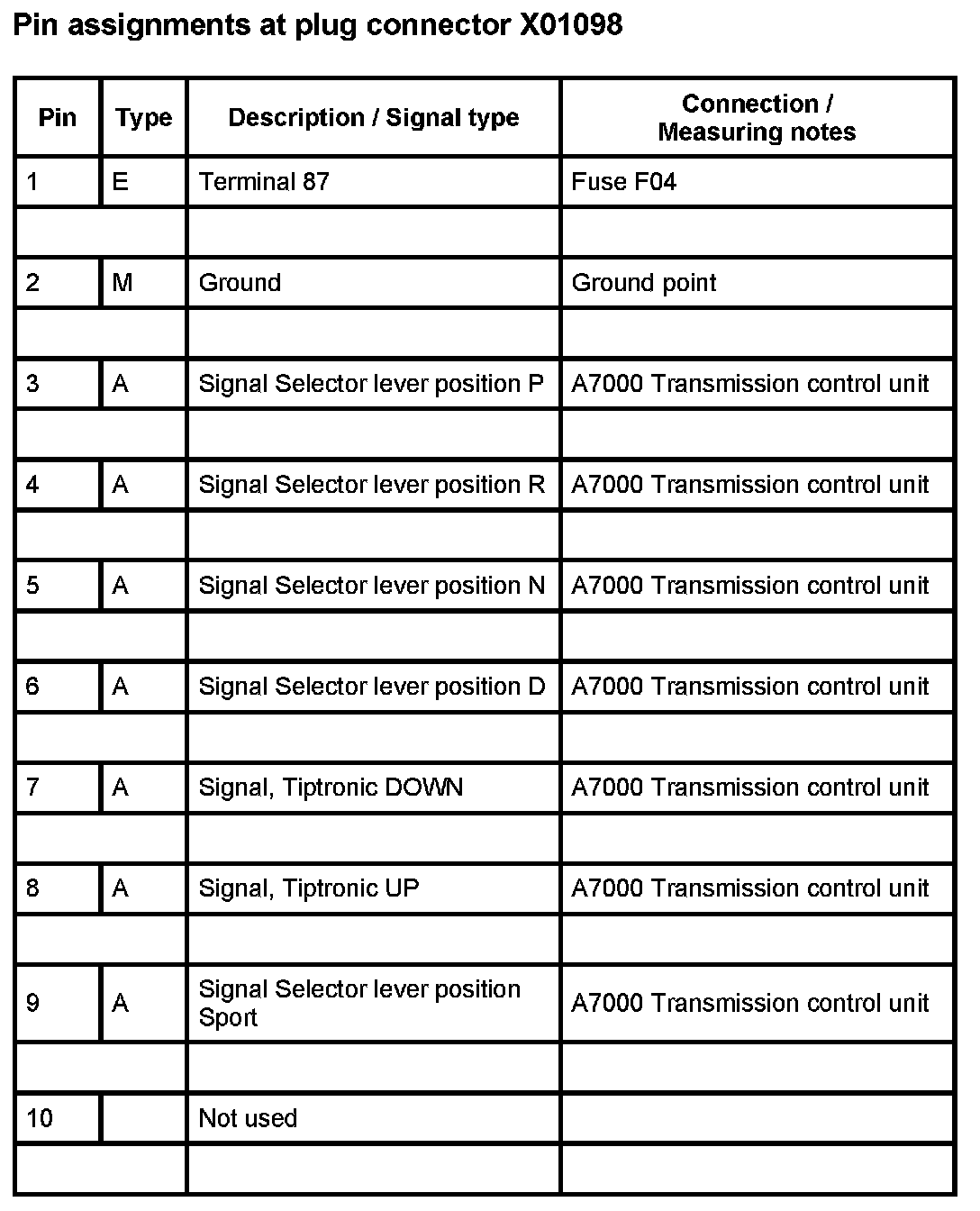

Pin Assignment

X01098:
