51 11 157 Replacing Front Bumper Trim

51 11 157 - Replacing front bumper trim





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim.

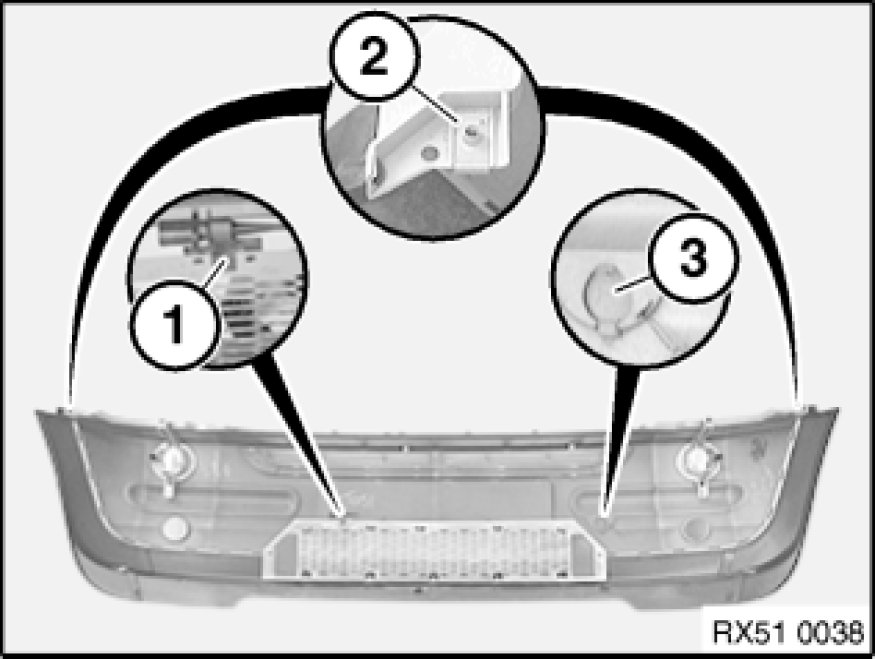

Remove outside temperature sensor (1) Service and Repair.
Remove clips (2) for bumper height adjustment.
Remove towing eye cover (3).





Remove spoiler on bumper trim 51 11 150 Removing and Installing/Replacing Side Trim (Without Side-Marker Lamp) of Front Bumper (without side marker light).
Remove center section of spoiler on bumper trim 51 11 152 Removing and Installing/Replacing Lower Spoiler of Front Bumper.
Remove front side light/direction indicator light Removing and Installing/Replacing Complete Front Left or Right Direction Indicator Lamp.
Remove grille for bumper trim .
Remove ornamental strip on bumper trim .
