Removing and Installing/Replacing Speaker (Front Door)




65 13 070 - Removing and installing/replacing speaker (front door)





Necessary preliminary tasks:
- Remove front door trim Removing and Installing Front Left or Right Door Trim Panel

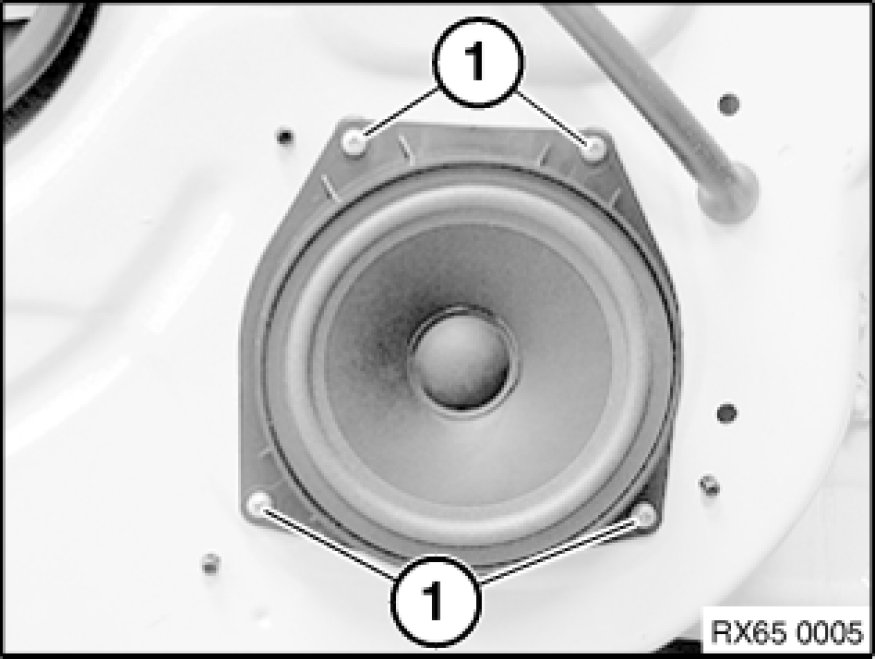

Release screws (1) and withdraw speaker.
Disconnect plug connection and remove speaker.
