Case: Service and Repair

Removing and Refitting or Replacing 5TH Gear Cover
Remove engine protection cover.

Drain gearbox oil.

Remove front left wheel arch liner.

Release front left ABS sensor from modular front end.

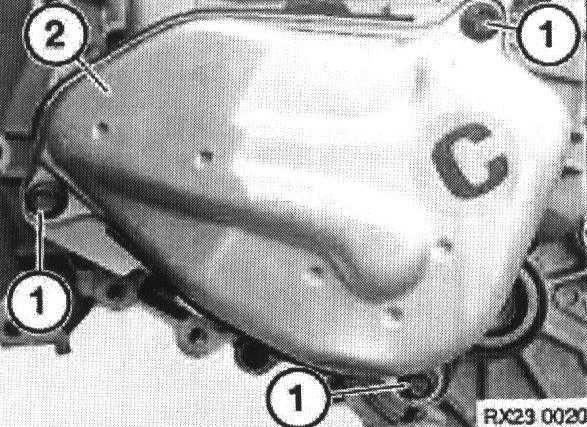

Remove retaining bolts (1) from 5th gear cover.

Remove 5th gear cover (2).
5th gear cover to gearbox 27 Nm





Clean sealing face.

Check sealing surface for damage.





Check 5th gear cover for damage.

Replace 5th gear cover seal (1).

Refit 5th gear cover.

Refill gearbox.

Check for leaks.
