With ECVT Automatic Transmission

Replacing Power Steering Pump (CVT)

Caution: Make sure all parts are absolutely clean. Seal off pipe connections with plugs. No dirt is allowed to enter the system.

Recycling:
Observe country-specific waste-disposal regulations.

Draw hydraulic fluid out of tank - do not reuse.

Install hint:
Fill hydraulic system.

Caution: Pull high voltage connector straight or damage may occur.

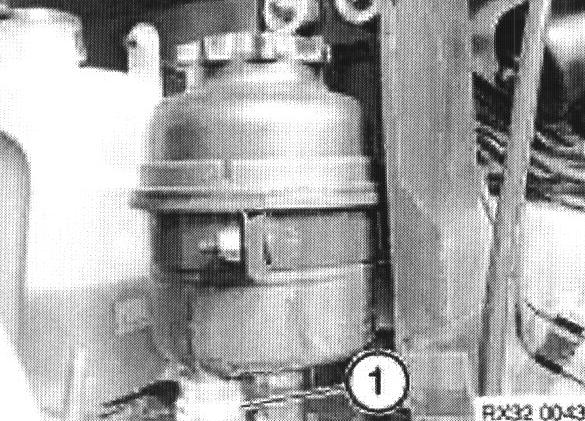

Release clip from intake pipe (1) on supply tank and release pipe.





Disconnect connector (1).

Disconnect high voltage connector (2).





High pressure pipe to power pack
M8 x 1.25 x 20 Screw 10 Nm

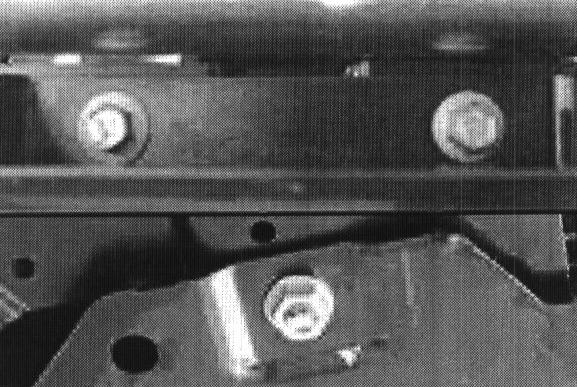

Release 2 bolts securing bracket to subframe.

Powerpack mounting bracket to subframe
M8 x 1.25 x 12 Screw 19 Nm

Remove nut, securing bracket to front subframe.

Powerpack mounting bracket to subframe
M8 nut 19 Nm

Remove pump assembly with connected pipe.

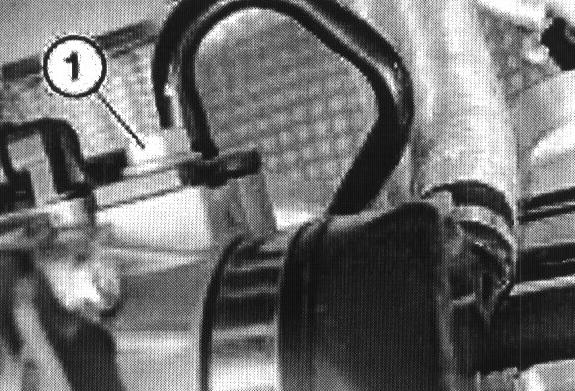

Remove security clip and disconnect intake pipe.

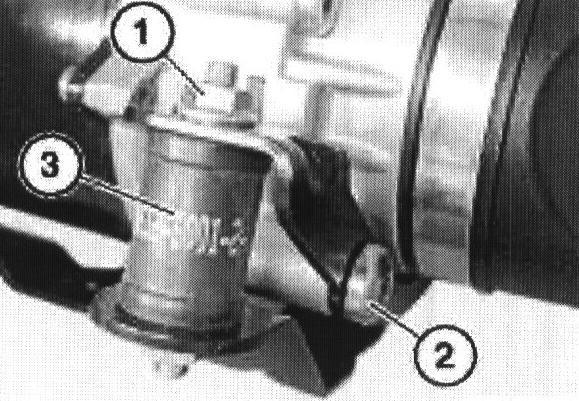

Remove nuts (1) and bolts (2) holding bracket to pump and fit a new pump.

Powerpack to rubber mount
M6 Nut 8Nm ± 1 Nm

Powerpack to mounting bracket
M8 Screw torx head 10 Nm ± 1 Nm

Change rubber mountings (3) if damaged.
