51 14 110 - Removing and installing/replacing rear model designation

51 14 110 Removing And Installing/Replacing Rear Model Designation

Important: The Instructions for number/letter combination cementing serve as the basis for these repair instructions and must be followed without fail.

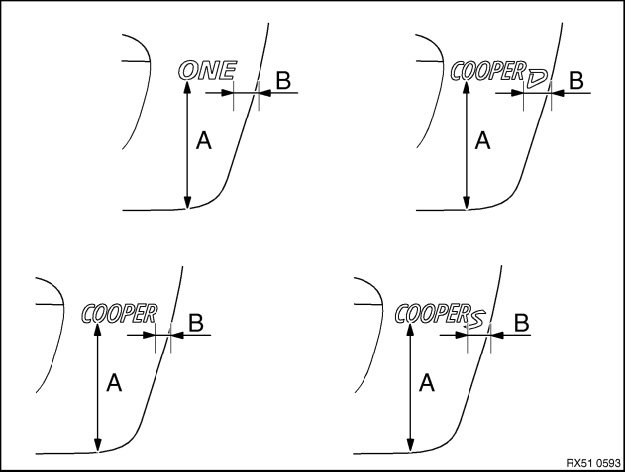

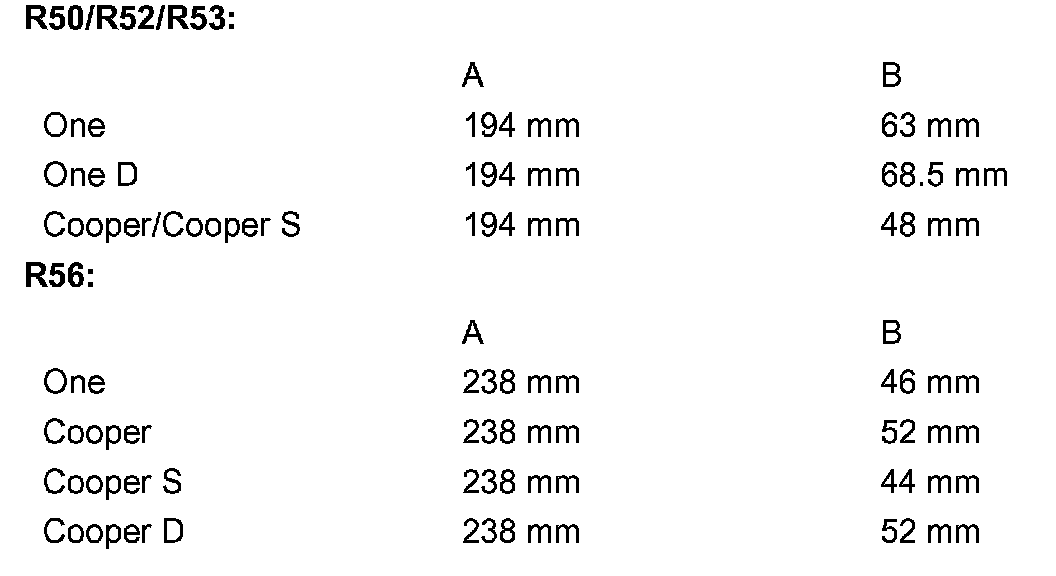

Fitting dimensions (R50/R52/R53/R56):







Mark position of model designation with adhesive tape using dimensions (A and B).
Position model designation on marking and stick on.
