Headlamp Washer Pump: Description and Operation

Headlamp Wash System
The headlight wash system is available as an option. An external relay in the A post fuse box is controlled by the BC1. The washer pump and bottle is located in the left front wheel arch area.

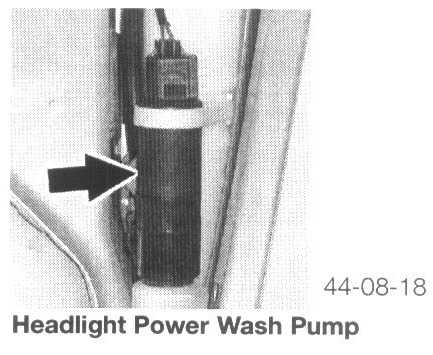

The headlamp power wash pump, is controlled by a relay mounted in the passenger compartment fuse box. A low side switch in the BC1 activates it.
