Removing Radial Shaft Seal of Right Axle Shaft (AISIN)

24 21 230 - Removing radial shaft seal of right axle shaft (AISIN)





Special tools required:
- 23 0 490 23 0 490 Extractor
- 24 4 300





Necessary preliminary tasks:
- Drain off transmission oil Service and Repair.
- Remove right axle shaft Removing and Installing/Replacing Right Drive Shaft.





Drive a hole into radial shaft seal using a center punch.

Important!
Do not use a drill as drillings may result in transmission malfunction.

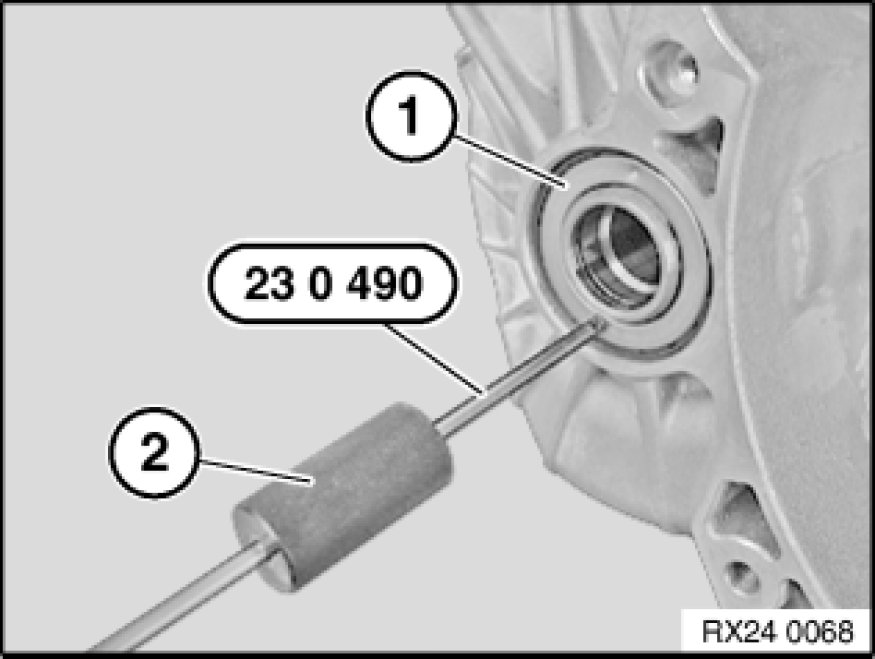

Screw special tool 23 0 490 23 0 490 Extractor into radial shaft seal.

Drive out radial shaft seal (1) with impact weight (2).





Installation:
Coat sealing lips of new radial seal with clean transmission oil.

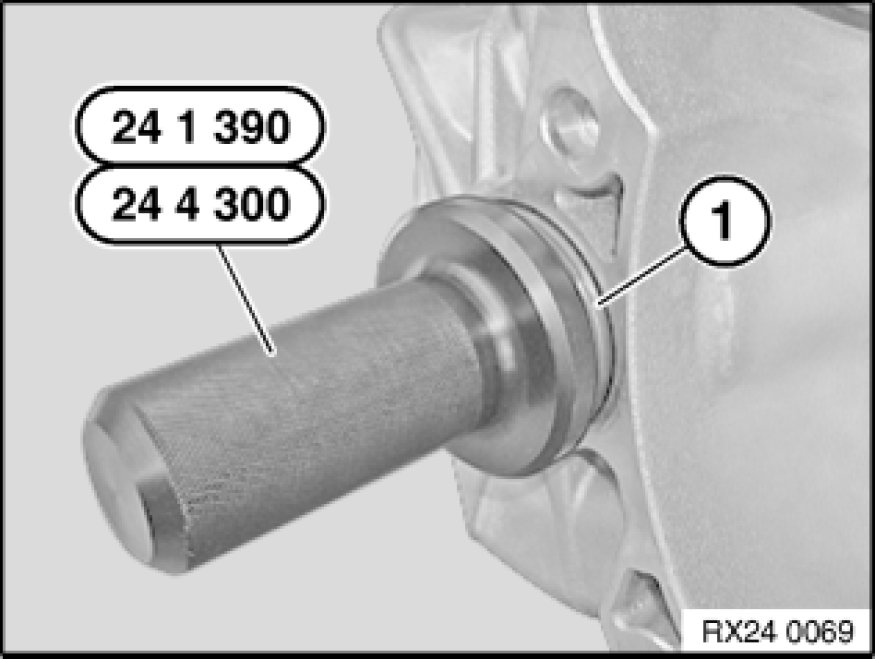

Drive radial shaft seal (1) firmly home with special tool 24 4 300.
