Removing Radial Shaft Seal of Left Axle Shaft (AISIN)

24 21 220 - Removing radial shaft seal of left axle shaft (AISIN)





Special tools required:
- 23 0 490 23 0 490 Extractor
- 24 4 300





Necessary preliminary tasks:
- Drain off transmission oil Service and Repair.
- Remove left axle shaft Removing and Installing/Replacing Left Drive Shaft.





Drive a hole into radial shaft seal using a center punch.

Important!
Do not use a drill as drillings may result in transmission malfunction.

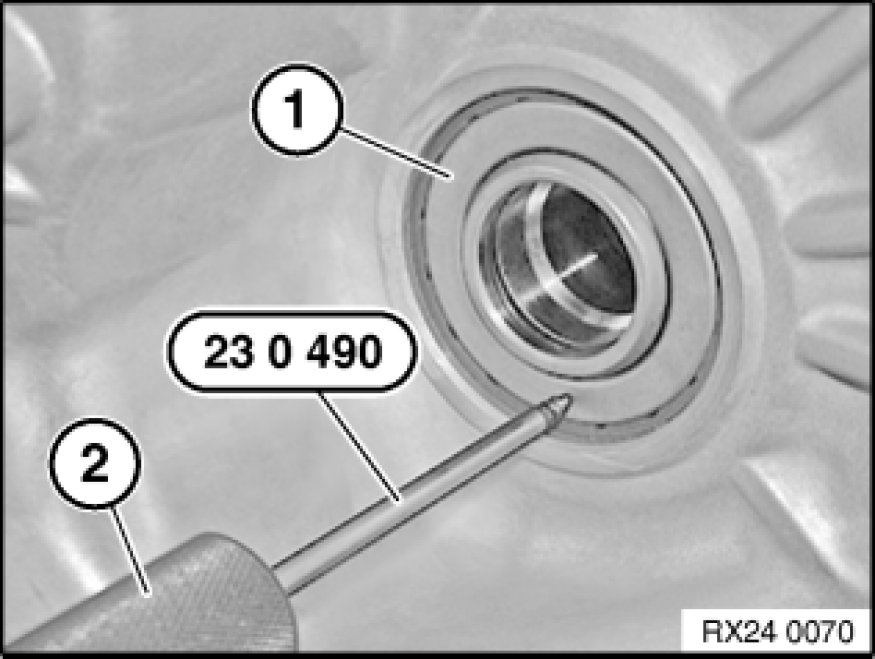

Screw special tool 23 0 490 23 0 490 Extractor into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).





Installation:
Coat sealing lips of new radial seal with clean transmission oil.

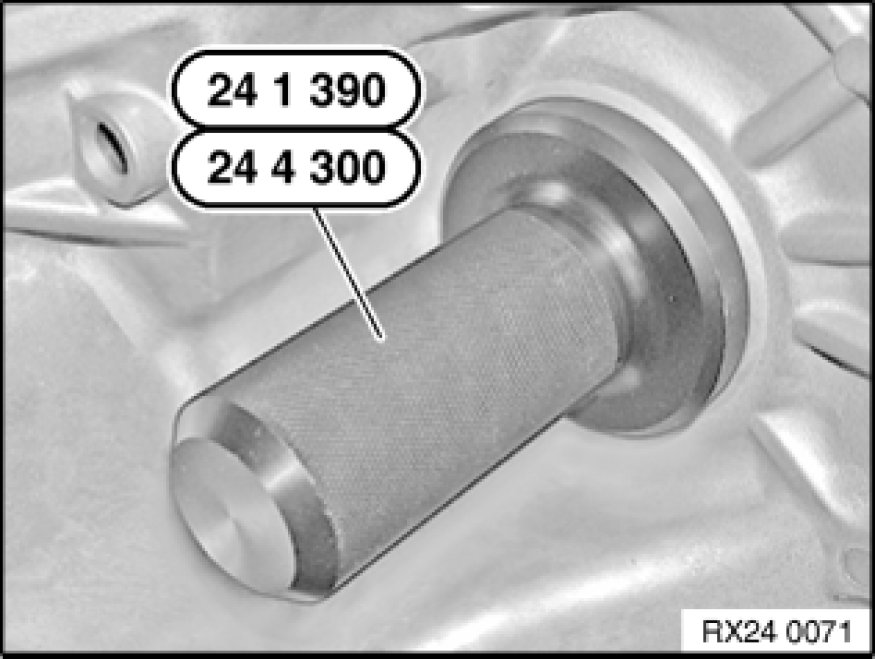

Drive shaft seal firmly home with special tool 24 4 300.
