Replacing Lower Engine Carrier Bracket




22 11 045 - Replacing lower engine carrier bracket





Important!
Support engine with transmission lifter.

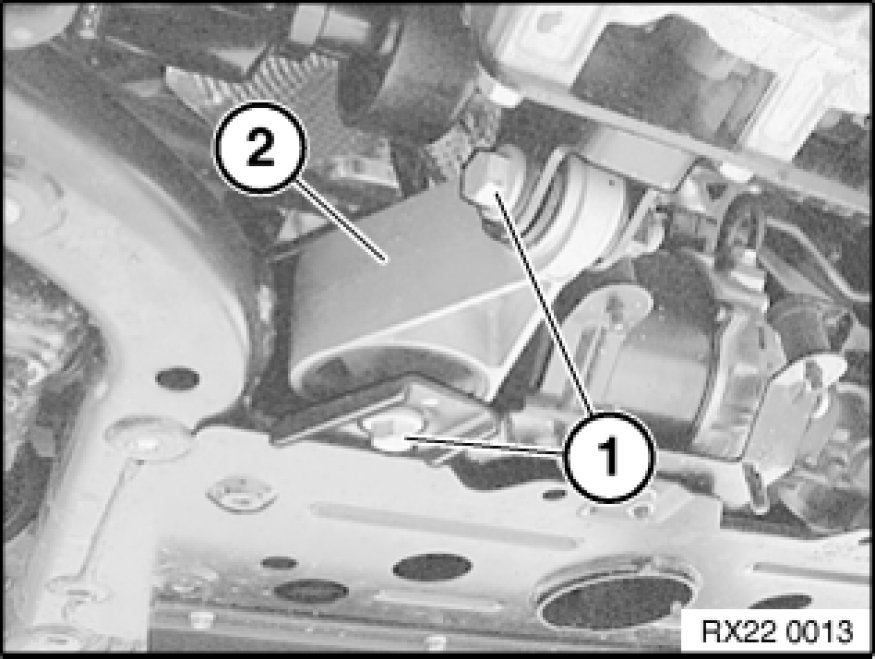

Release bolts (1) and remove engine carrier bracket.
Tightening torque 22 11 8AZ/ 9AZ Specifications.
