Transmission Control CVT (Automatic Transmission Up to 07/04)

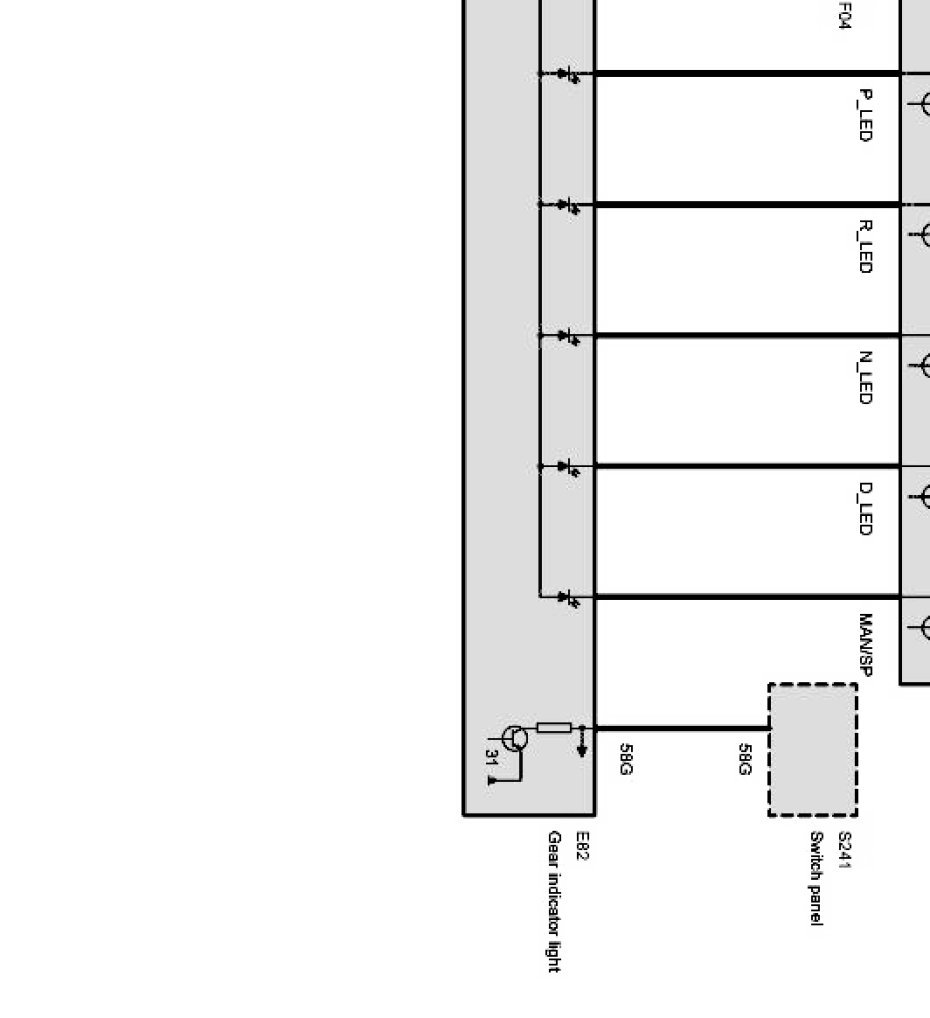

Transmission control CVT Part 1:

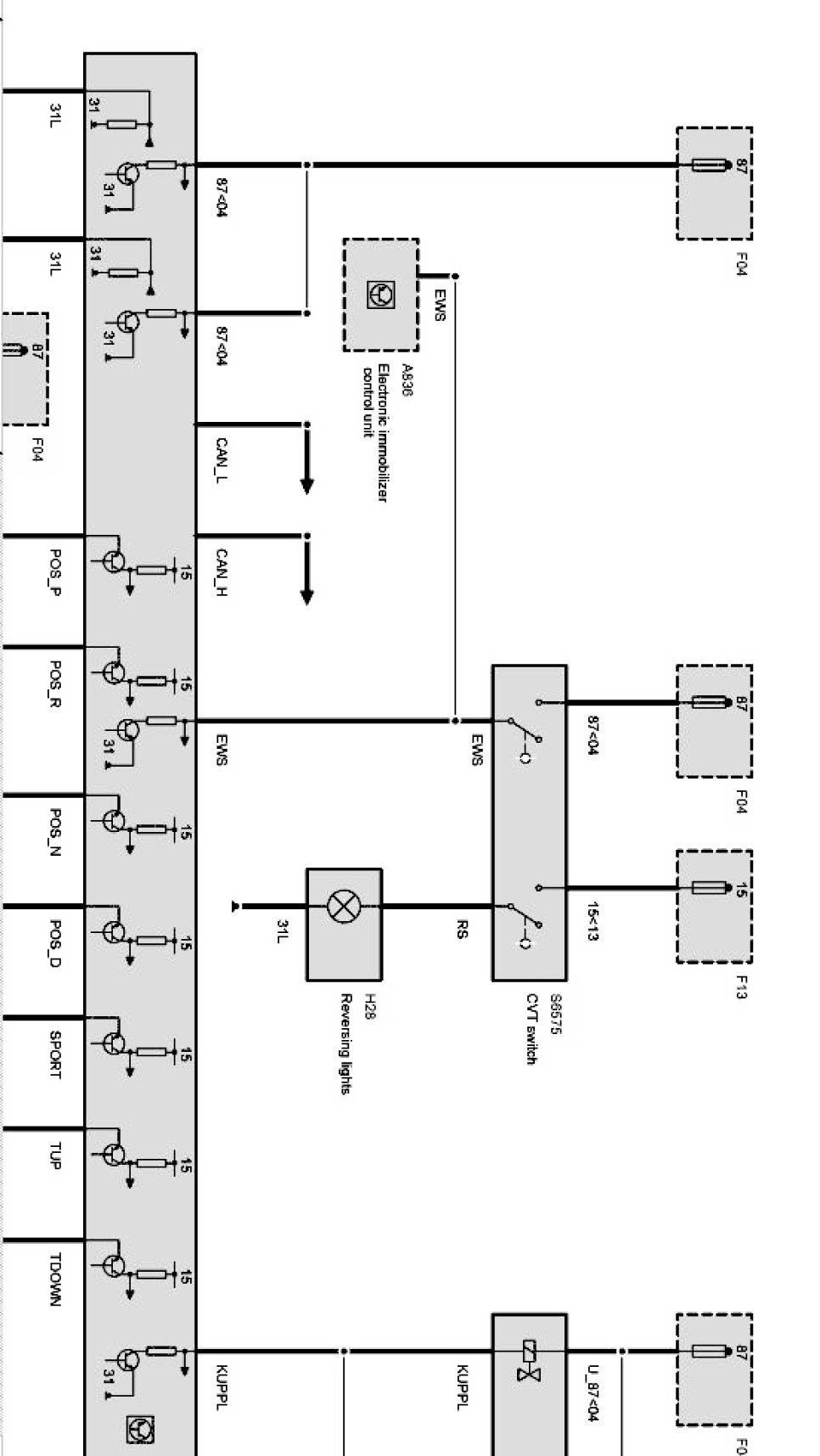

Transmission control CVT Part 2:

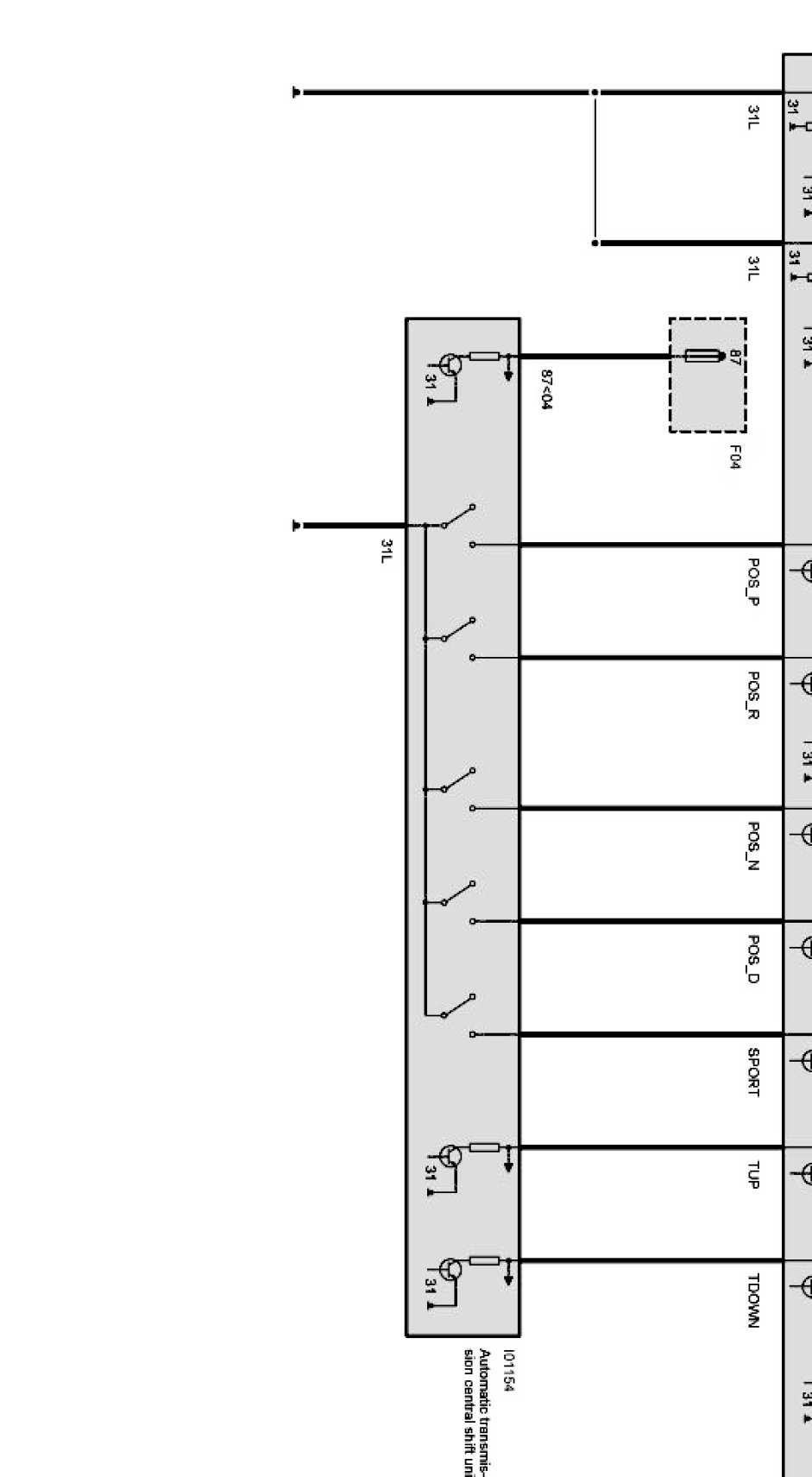

Transmission control CVT Part 3:

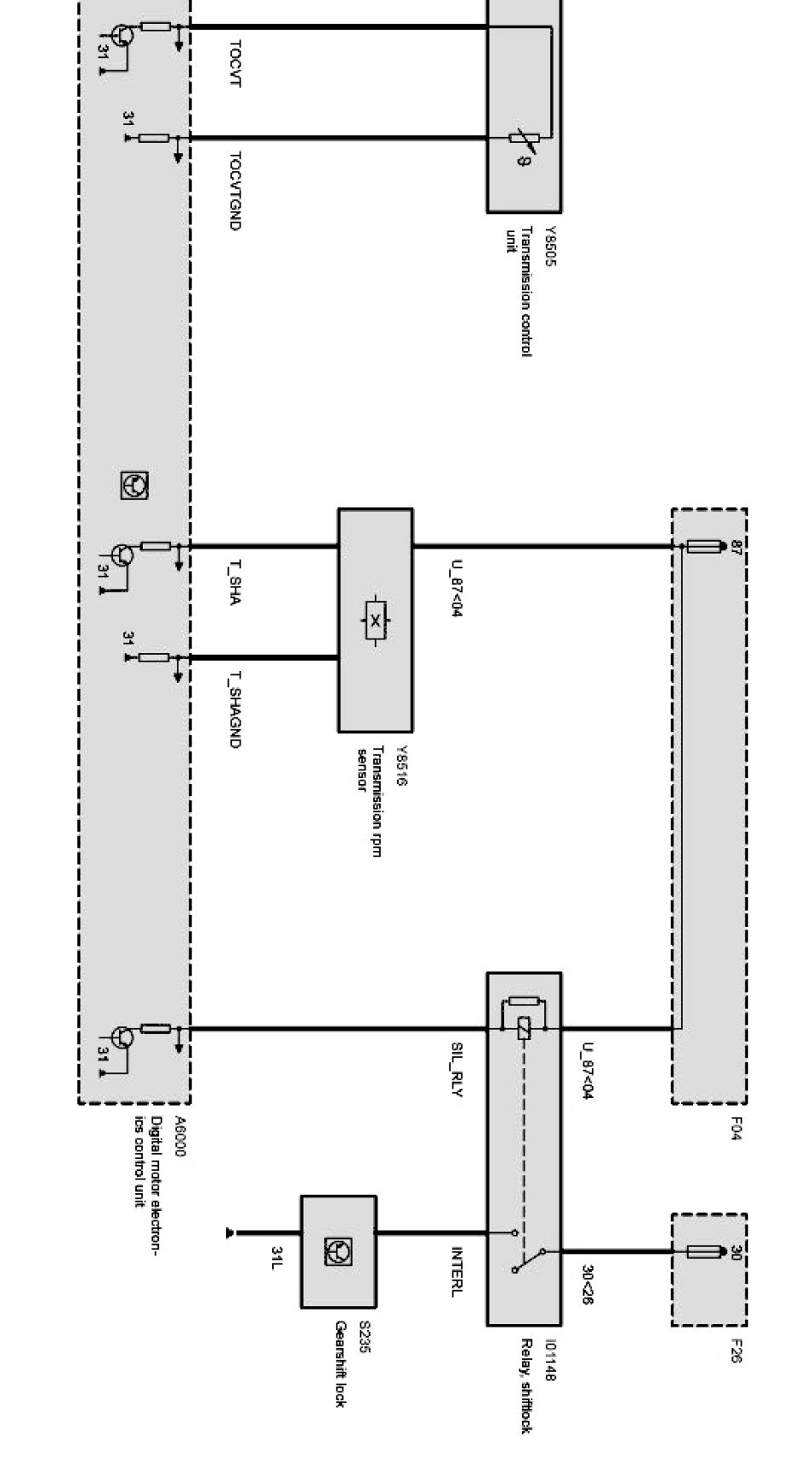

Transmission control CVT Part 4:

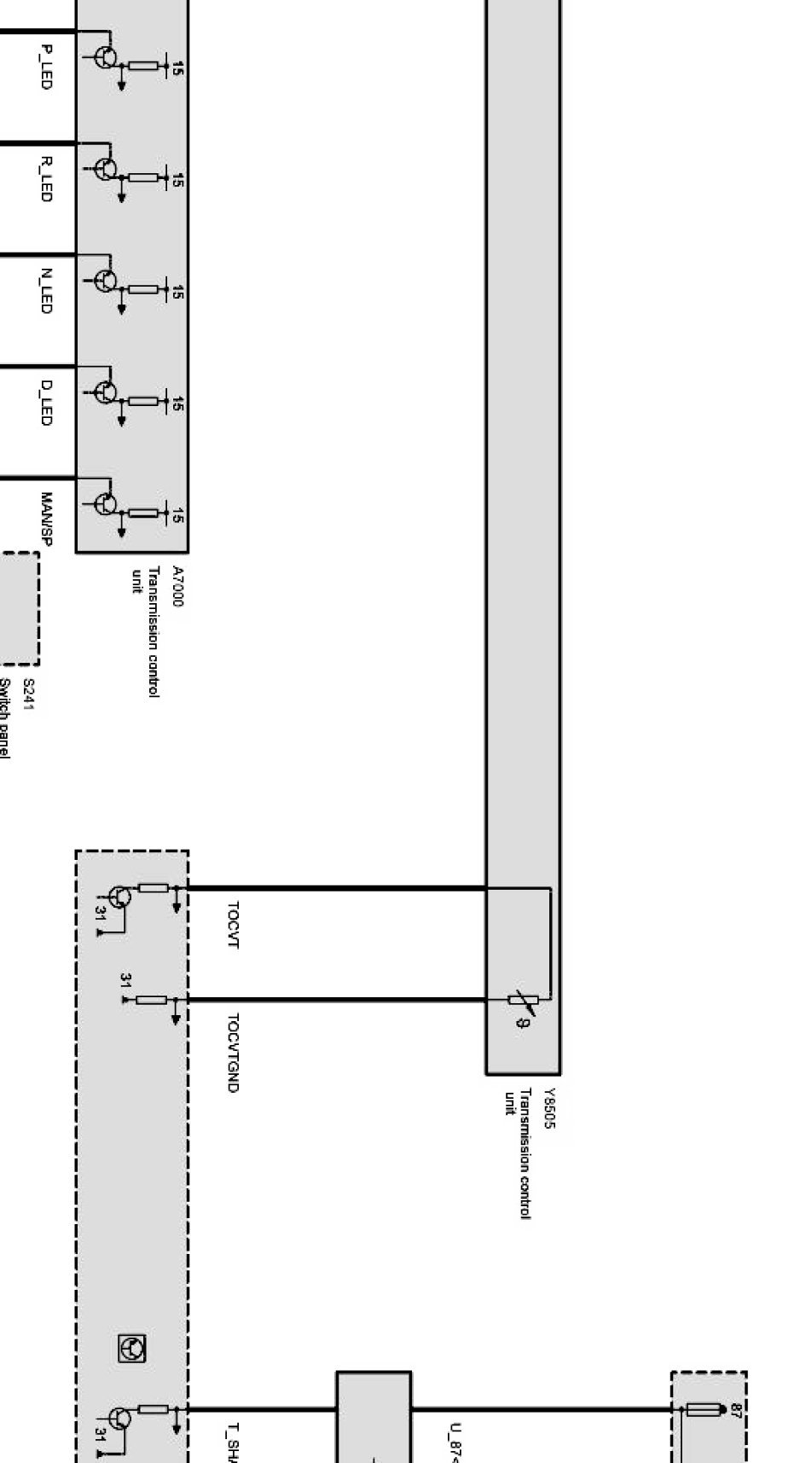

Transmission control CVT Part 5:

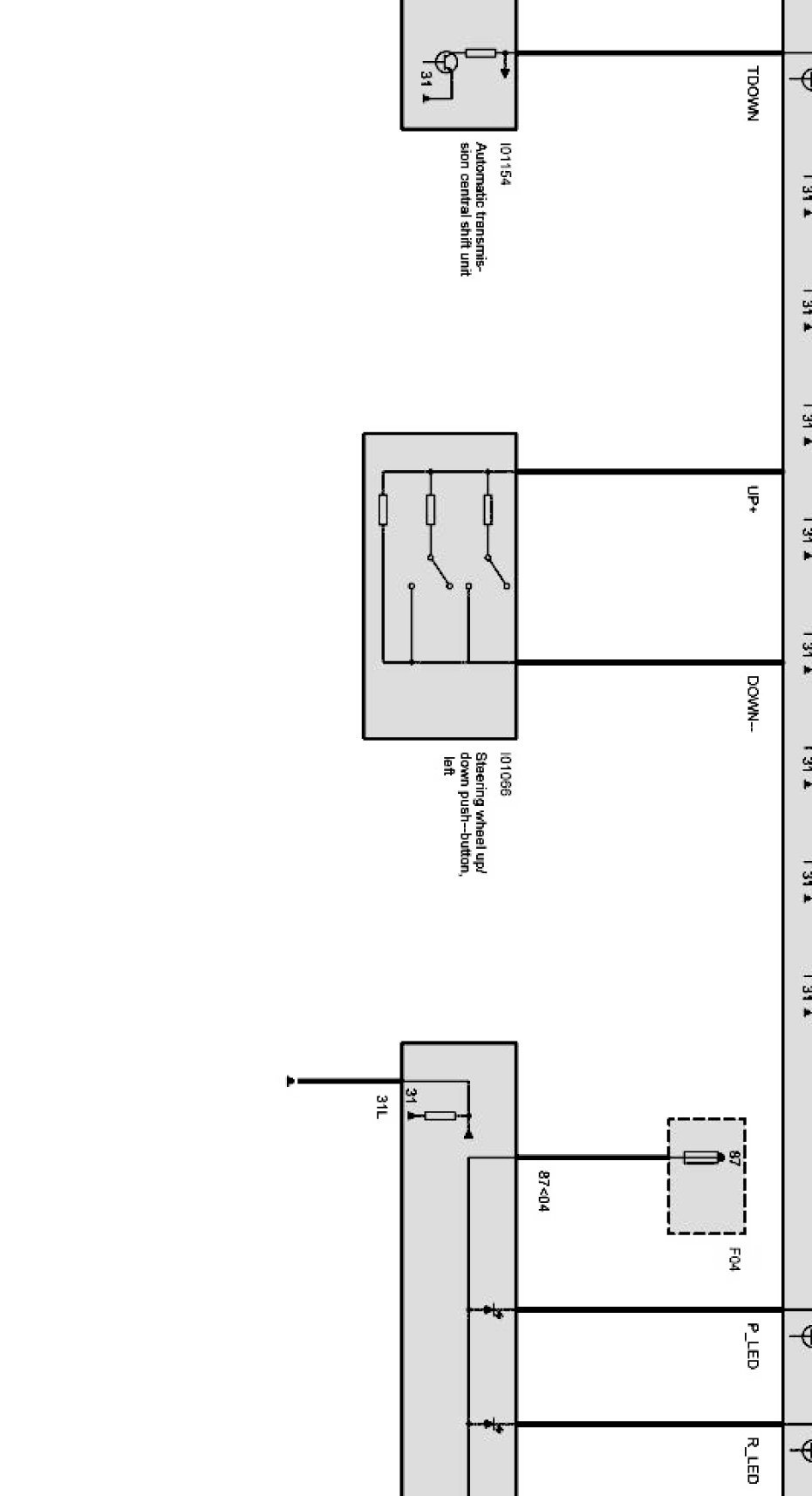

Transmission control CVT Part 6:

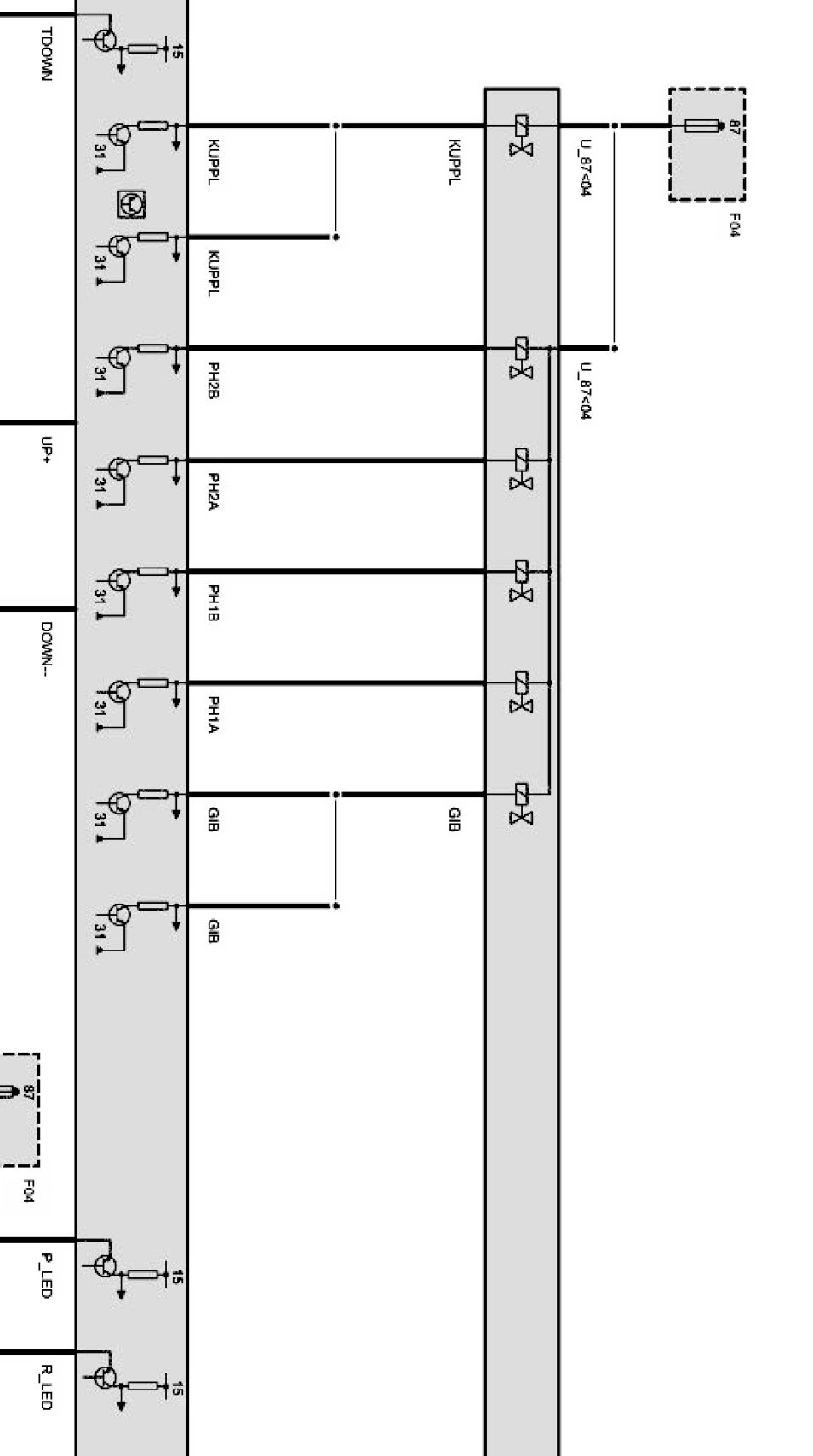

Transmission control CVT Part 7:
