Mini
>>
2005
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X10692 Adapter 616035, Storage Location D111
>>
S5 Windscreen Wiper Switch (Up to 01/05)
S5 Windscreen Wiper Switch (Up to 01/05)
Connector View
X10692 Component connector (10-pin, green)

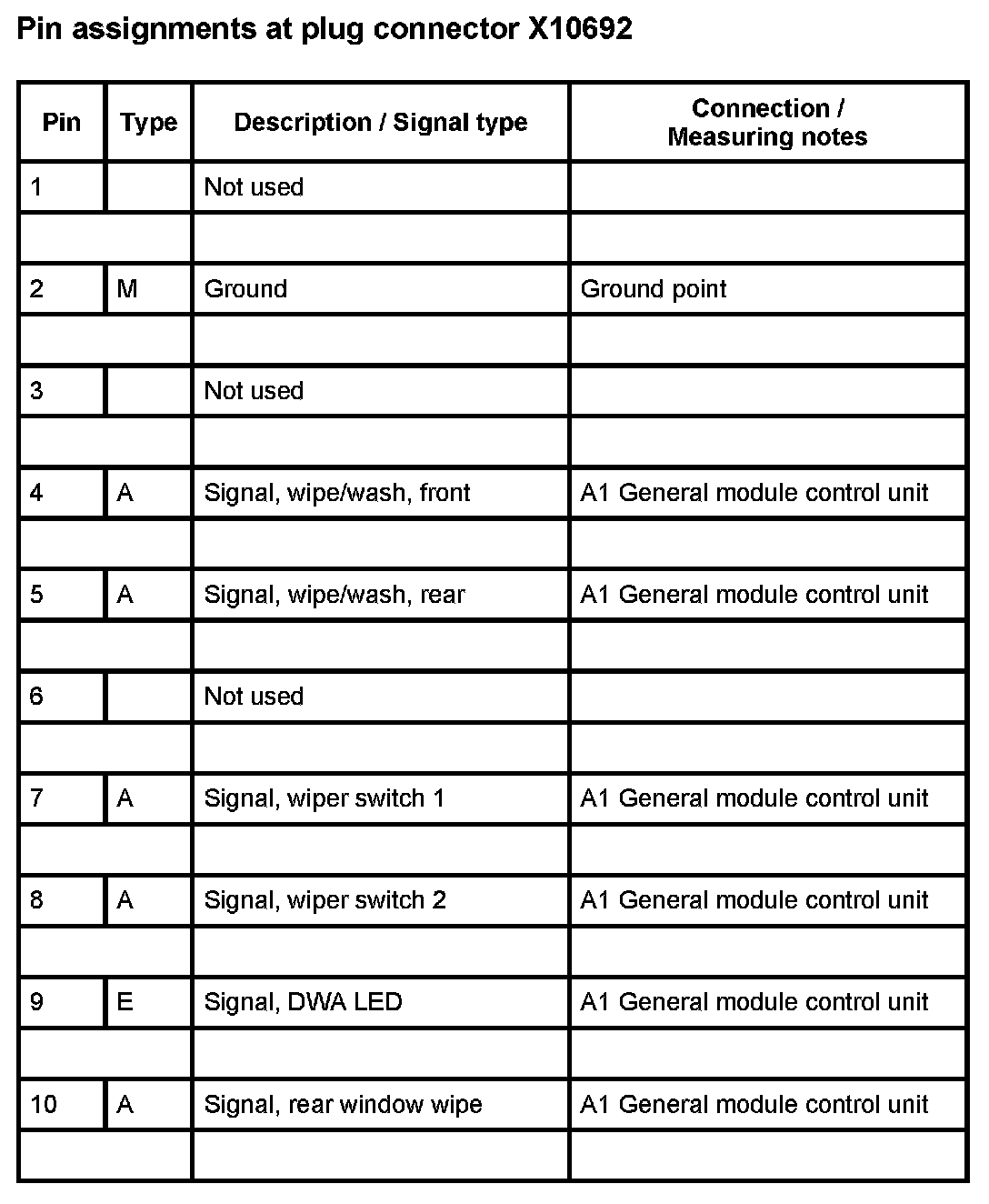

Pin Assignment
X10692:
