Removing and Installing/Replacing Left or Right Convertible Top Locking Hook

54 34 175 - Removing and installing/replacing left or right convertible top locking hook





Necessary preliminary tasks:
- Remove guide rail panel Removing and Installing/Replacing Left or Right Guide Rail Panel
- Remove inner trim for guide rail Removing and Installing/Replacing Inner Trim For Left or Right Guide Rail
- Remove front seal Removing and Installing/Replacing Front Left or Right Seal

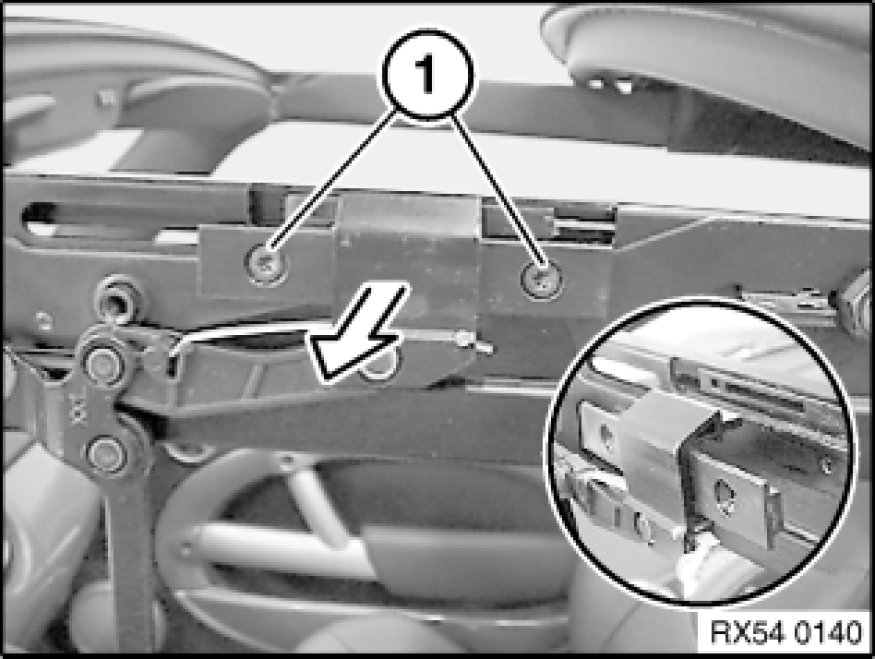

Release screw (1).

Note:
Insert screw with Loctite.

Feed out locking hook.





Release screw (1).

Note:
Insert screw with Loctite.

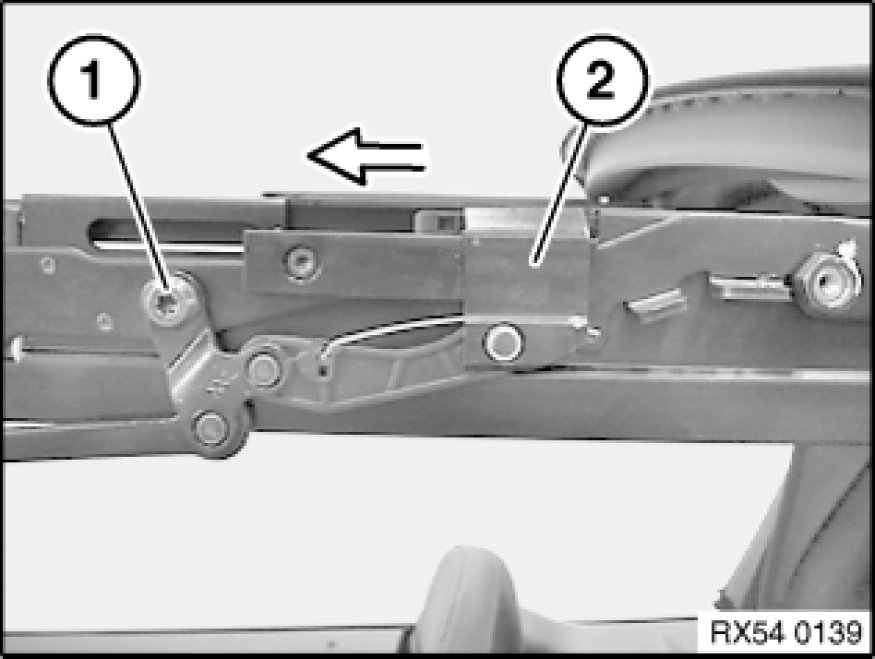

Slide carriage (2) forwards until both guide rail screws are accessible.

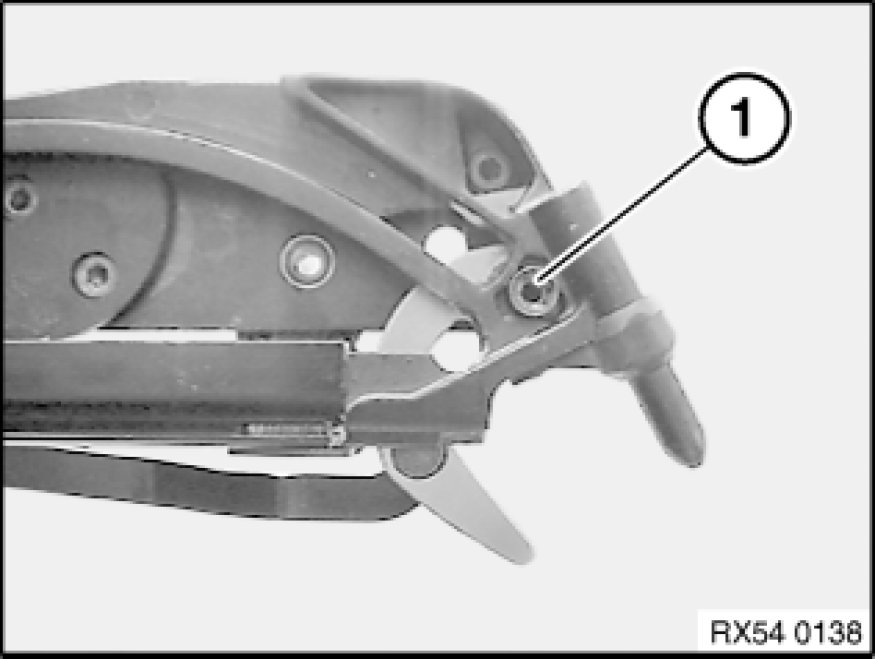

Release screws (1).

Note:
Insert screws with Loctite.

Remove locking hook with guide rail.

Installation:
Insert spring correctly in groove.





Note:
Carry out function check Component Tests and General Diagnostics.
