Removing and Installing or Replacing Base Plate on Left or Right

54 34 140 - Removing and installing or replacing base plate on left or right





Necessary preliminary tasks:
- Remove panel Removing and Installing or Replacing Trim For Roof Pillar At Front (A-Pillar), Left or Right for roof pillar at front

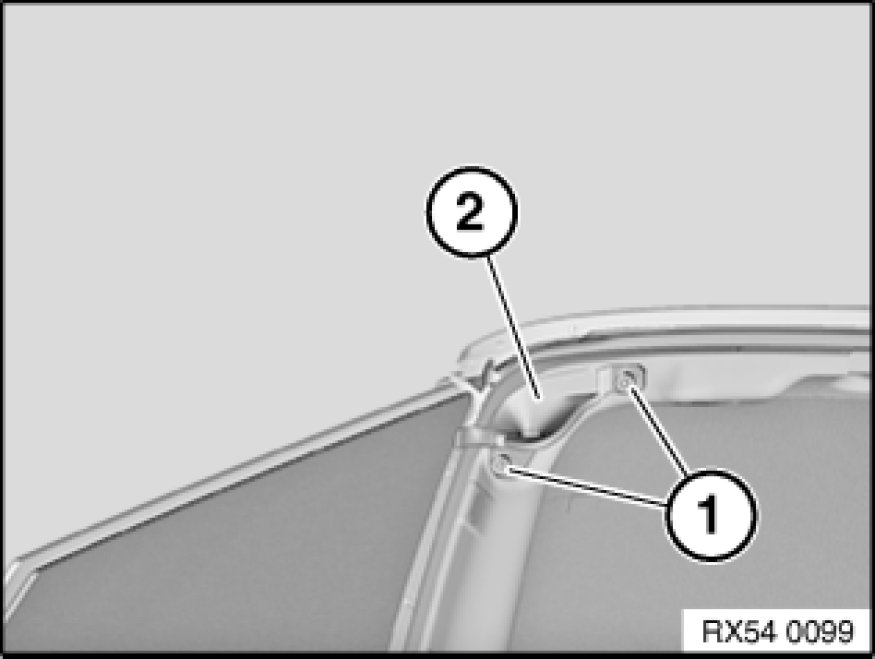

Release screws (1).
Tightening torque 54 34 3AZ 54 34 Motor-Driven Convertible Top (Electrical Components).

Installation:
Adjust Adjusting Convertible Top base plate (2).
