Drink Holders: Service and Repair

51 16 202 - Removing and installing/replacing front cup holder





Necessary preliminary tasks:
- Remove front center console 51 16 200 Removing And Installing Front Center Console

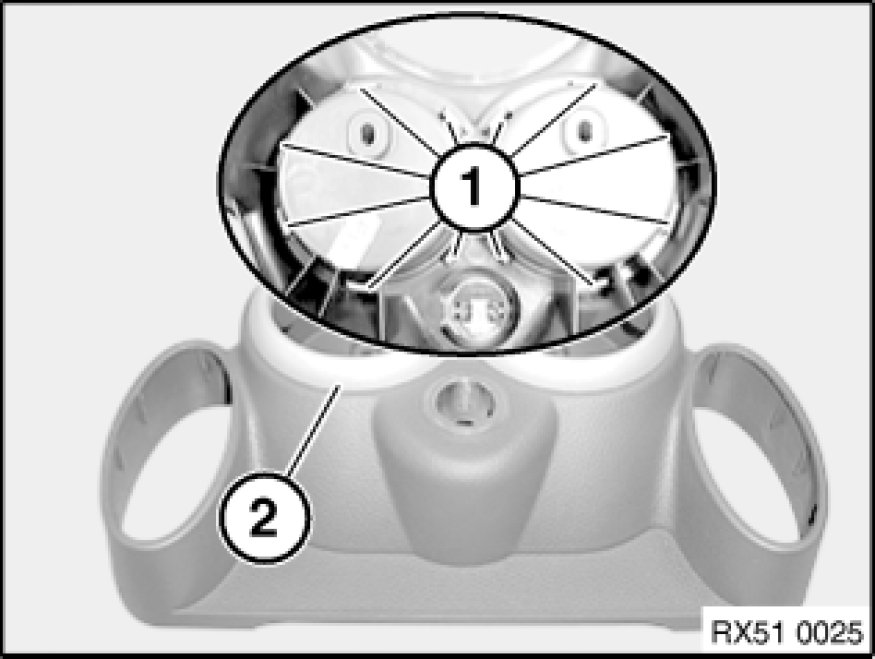

Release catches (1) on underside of center console.
Remove cup holder trim ring (2).

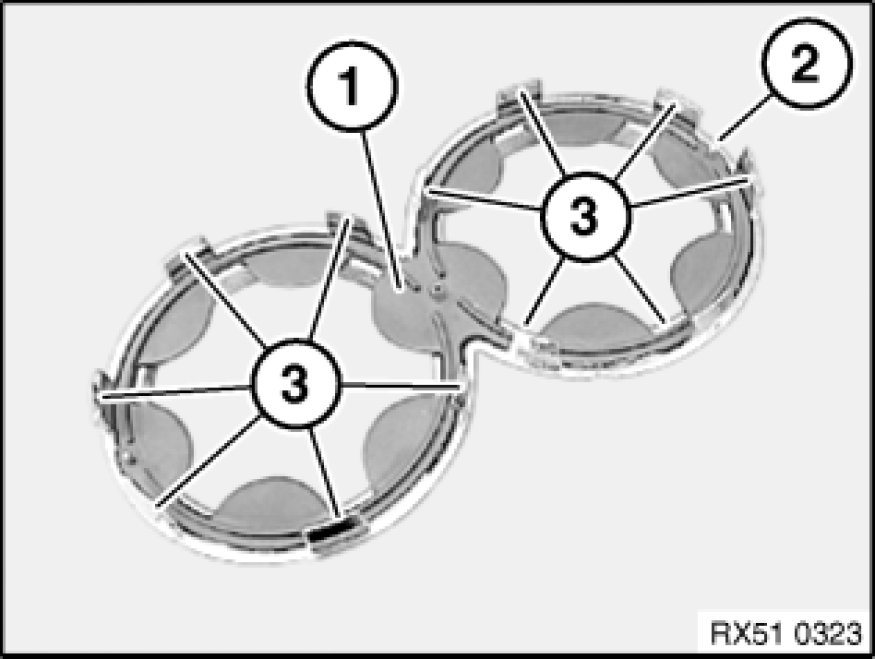

Remove cup holder insert (1) from cup holder trim ring (2).

Installation:
Catches (3) on cup holder trim ring (2) must not be damaged.
