Removing and Installing/Replacing Right Engine Hood/Bonnet Lock

51 23 100 - Removing and installing/replacing right engine hood/bonnet lock

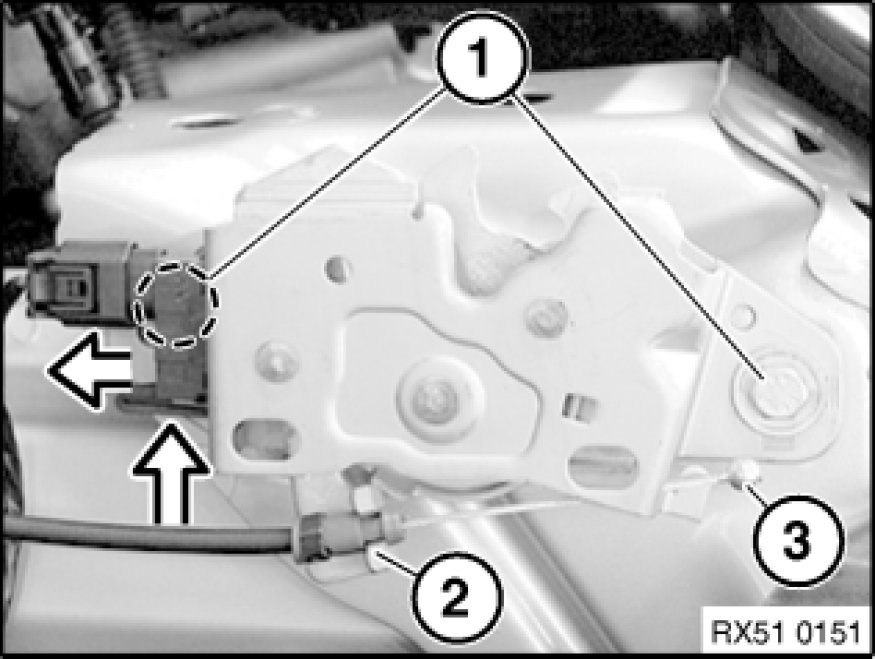

Release engine hood/bonnet contact on underside and remove in direction of arrow.
Remove screws (1).
Release outer sleeve of Bowden cable from lock (2).
Remove Bowden cable from lock (3).
Remove lock.

Installation:
Adjust hood/bonnet lock Adjustments.
