Initial Inspection and Diagnostic Overview

Compatibility Check For Telephone Systems With Mobile Phone Connectivity
Systems concerned: TCU (with mobile phone), ULF, ULF-SBX, ULF-SBX-H for E39/ E46/ E53/ E83/ E85/ MINI/ R56/ E65/ E60/ E87/ E90/ E70/ E71

Diagnosis of the telephone system only makes sense and is conducive to achieving objectives if the symptoms of the problem indicate there is no incompatibility caused by the mobile phone. As a rule, there is an incompatibility caused by the mobile phone if the problem occurs sporadically or only in certain locations (e.g. in the workshop) and is not reproducable.

More information on the tested mobile phones can be found in the current compatibility matrix valid for your country.

Market
USA
BMW, Rolls-Royce
www.bmwusa.com/bluetooth
www.wireless4bmw.com
MINI
www.wireless4mini.com

Market
Canada
BMW, Rolls-Royce
www.bmw.ca/bluetooth
MINI
www.mini.ca/bluetooth

Market
Japan
BMW, Rolls-Royce
See Japan Extranet
MINI
See Japan Extranet

Market
Korea
BMW, Rolls-Royce
Currently, only the Samsung W350 is supported
MINI
Currently, only the Samsung W350 is supported

All other markets

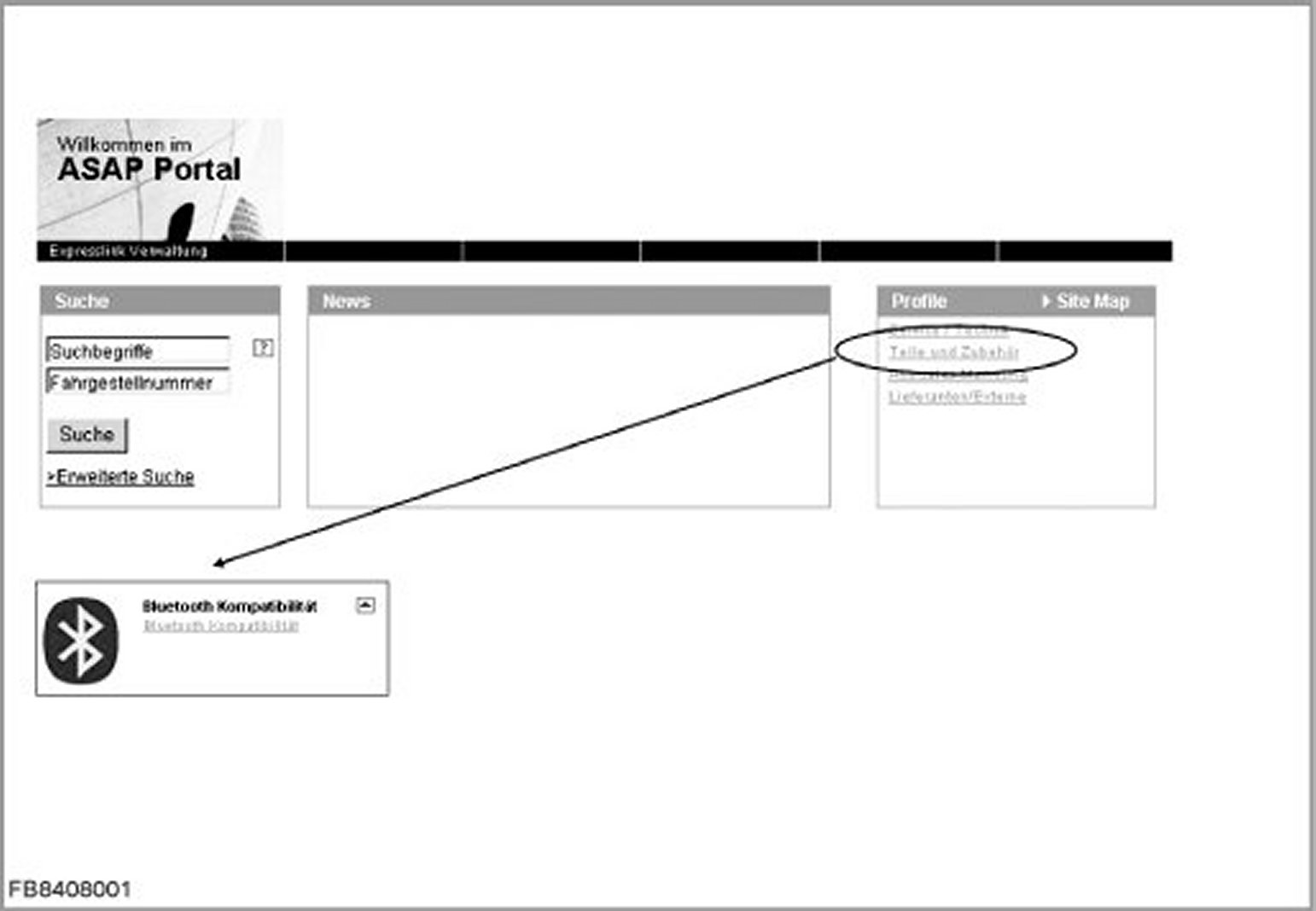

In the ASAP portal at --> Parts and Accessories --> Bluetooth Compatibility (see illustration)






Procedure For Compatibility Check Of The Telephone System

1. Open the current market-specific / brand-specific compatibility matrix (storage location see table above).

2. Compile mobile phone data:
- Model of the mobile phone
- Read out the software version of the mobile phone (procedure: see compatibility matrix)

3. Compile control module data:
- Variant of control module (TCU, ULF, ULF-SBX or ULF-SBX-H)
- Control module software version (BMW part number)

This data is displayed at the start of the test modules "Fault pattern catalogue, telephone system". It can be also be read out at the DIS tester at control-module functions --> Identification.

4. On the basis of the mobile phone data, the control module data and the compatibility matrix, determine whether the present combination of BMW telephone system and mobile phone has been tested and whether any restrictions are known.

Note: The fault patterns and diagnosis functions offered on the DIS tester are valid for tested mobile phones. If the problem reported by the customer is described in the compatibility matrix, the instructions given in the compatibility matrix have priority.
