Electrohydraulic Power Assisted Steering Cooling Fan Replace

Electrohydraulic Power Assisted Steering Cooling Fan Replace

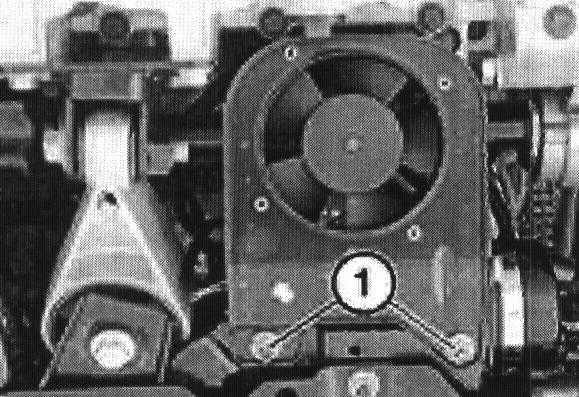

Remove nuts (1) securing fan to bracket.

Use nuts once only.

Auxiliary fan
M8 Nut 19 Nm
Note: Use once only.

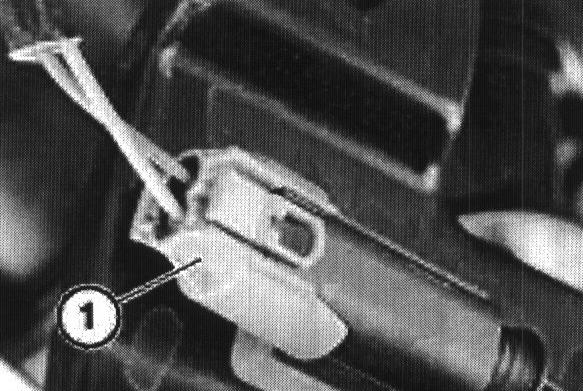

Disconnect connector (1).

Install hint:
Fit connector before installing fan.

Vehicles built before 1st March 2002

Note: Remove the fusebox access cover and check if the diode is still fitted. If the diode has already been removed DO NOT continue with the following process:





Release passenger compartment fusebox.

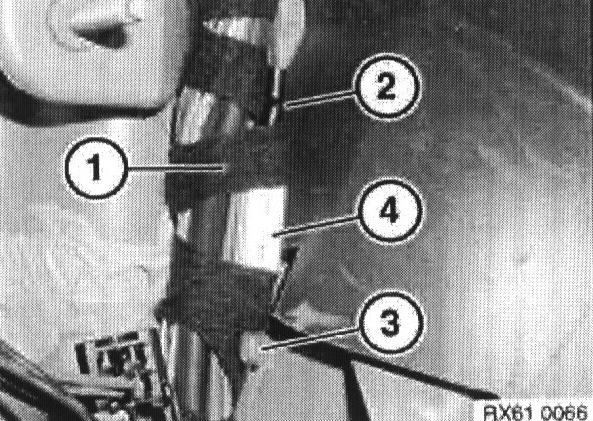

Release harness tape (1) to access diode (4) and connectors (2 and 3).

Disconnect connectors (2) and (3) from diode (4).

Remove and discard diode (4).

Connect the connector (2) to (3) and re-tape harness.
