Center Mounted Brake Lamp: Service and Repair

Removing And Installing/Replacing Additional Stop Light


CAUTION!
Apply masking tape across stop light to secure to body.
This will prevent the light from dropping onto the roof panel and causing paint damage during the following step.







Open Tailgate.

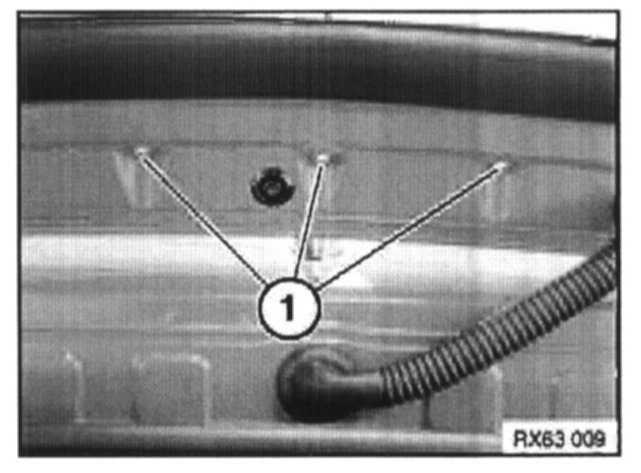

Remove Torx screws (1).







Close Tailgate.
Release masking tape and light from tailgate to access electrical connector.

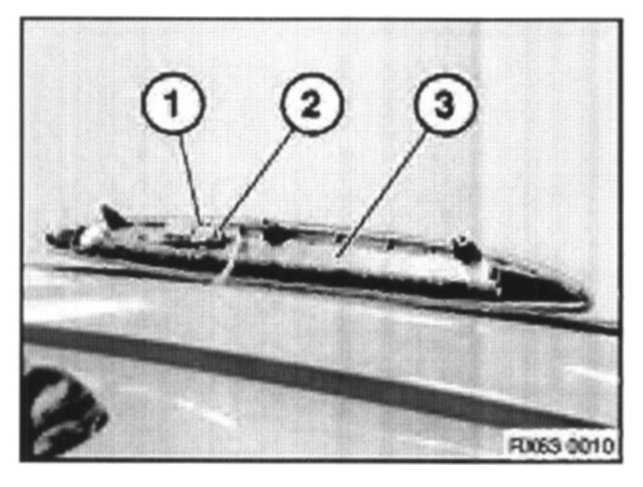

Release connector from light assembly clip (1), disconnect connector (2) and remove light assembly (3).
