Replacing Rear Speaker




Removing And Installing/Replacing Rear Speaker

Remove left or right rear trim panel.

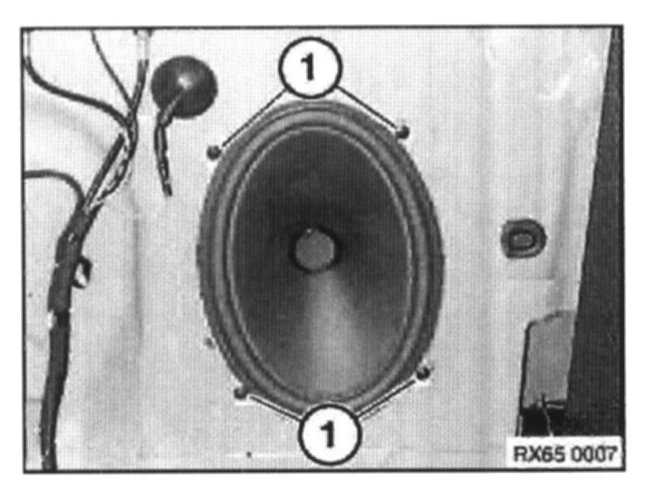

Remove screws (1).
Disconnect speaker connector.
