Replacing Front Speaker




Removing And Installing/Replacing Front Speaker

Remove front door trim panel.

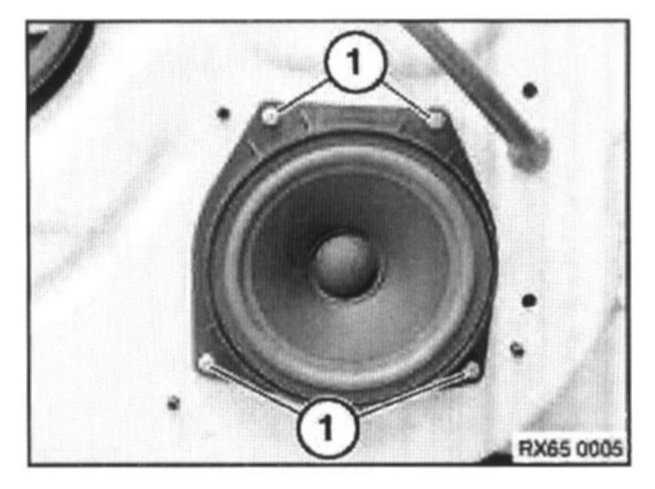

Remove screws (1).
Disconnect speaker connector.
