Clutch Slave Cylinder: Service and Repair

Removing And Installing Or Replacing Clutch Operating Cylinder
Remove battery box.

Note: After completing work, bleed clutch hydraulics. Do not clamp the clutch slave cylinder feed pipe. Service and Repair

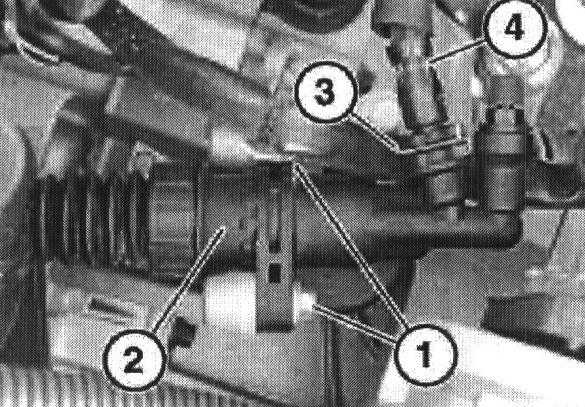

Remove clutch slave cylinder retaining bolts (1) and remove clutch slave cylinder (2).

Remove retaining clip (3) and remove pipe (4).
Slave cylinder to bracket
M8 24 Nm
