Boost Solenoid: Service and Repair

12 14 650 - Replacing suction pressure pipe sensor





Necessary preliminary tasks:
- Read out fault memory of DME control unit
- Check stored fault messages
- Switch off ignition
- Remove cover of injection pipe
- Remove throttle Service and Repair

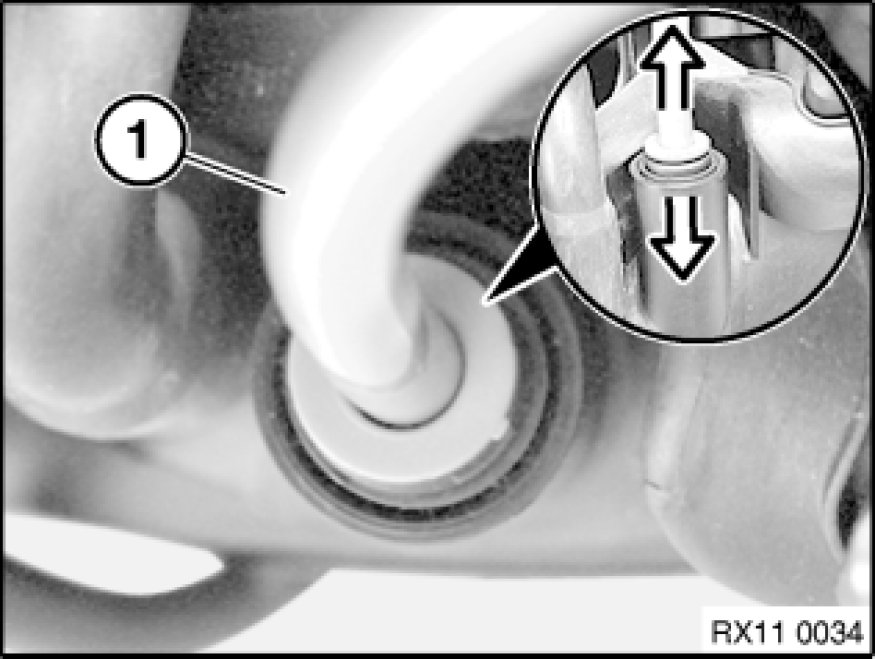

Unlock vacuum line (1) on intake manifold and detach.





Unlock plug on suction pressure pipe sensor and detach.

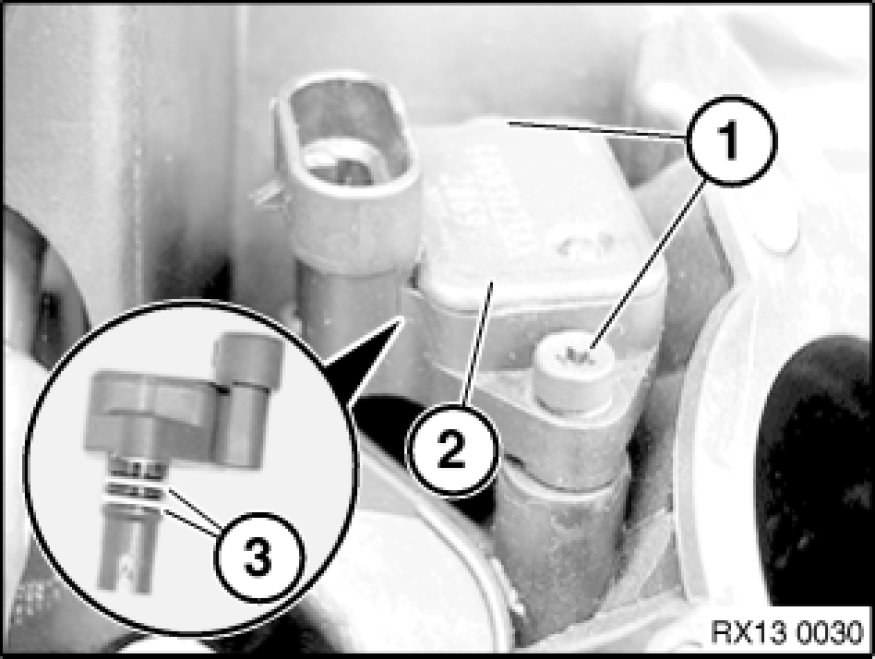

Release screws (1) and remove suction pressure pipe sensor (2).
Replace sealing rings (3).
Tightening torque 13 62 3AZ.





Note:
Now clear the fault memory.
