Coolant Reservoir: Service and Repair

Removing And Installing/Replacing Coolant Expansion Tank

Note: Follow instructions for working on cooling system.

Important
Make sure with fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion

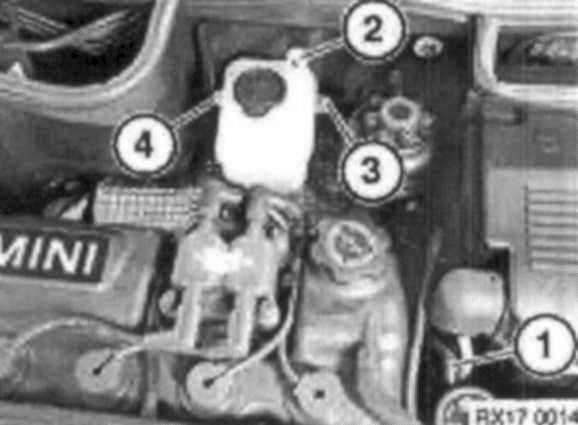

Remove hose from filler neck (1).

Unscrew retaining nut (2) on expansion tank and lift expansion tank out of mountings (3) and (4).

Installation
Check coolant level.
Tighening torque: 5 Nm
