Ignition Coil: Service and Repair

Replacing Ignition Coil







Turn ignition off.
Disconnect connector (1).
Disconnect ignition leads (2) from ignition coil.
Remove screws (3).


NOTE:
Ignition coil fixing screws are separate from the ignition coil.
Replace insulators if damaged.

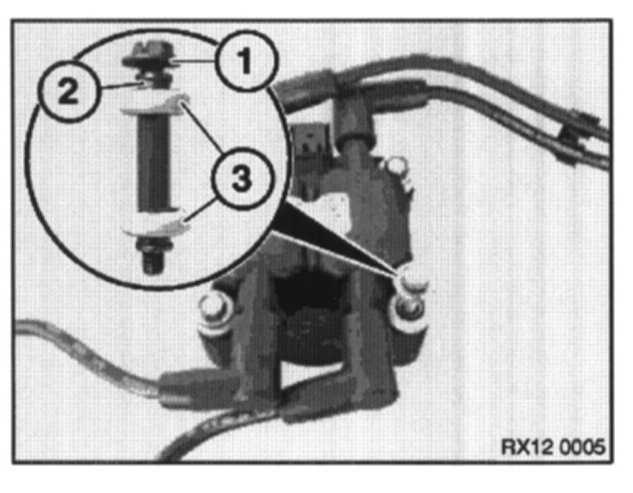

1. Bolt
2. Sleeve
3. Insulators

Tightening torque 12 Nm.
