Replacing Left or Right Sealing Rings on Intercooler

Removing And Installing/Replacing Sealing Rings On Intercooler
Remove intercooler.

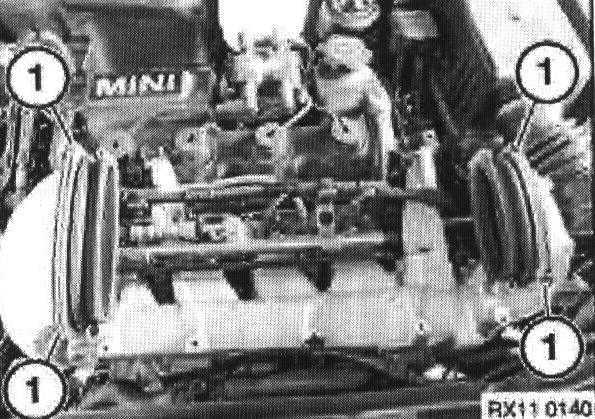

Remove sealing ring bracket retaining bolts (1), remove brackets and sealing rings.

Replace sealing rings.
Intercooler sealing ring bracket to sealing ring
M6 9 Nm






Install hint:
Install sealing ring bracket on left hand side of intercooler on sealing ring first before installing sealing ring.

Check correct position of sealing rings and brackets.

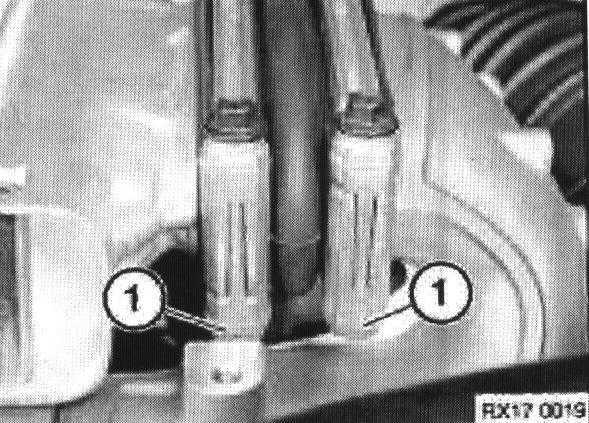

Note direction of brackets and threads on bottom (1).
