Replacing Rubber Sleeve Between Fuel Filler Neck and Fuel Tank

Replacing Rubber Sleeve Between Fuel Filler Neck And Fuel Tank

Remove left rear road wheel.
Remove rear left wheel arch trim.
Remove fuel filler cap.

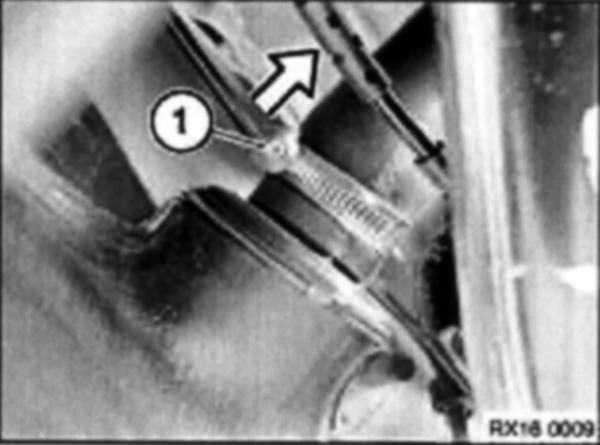

Release hose clip from fuel filler neck (1) and remove hose from filler neck.
Tightening torque 2.5 - 3.5 Nm.

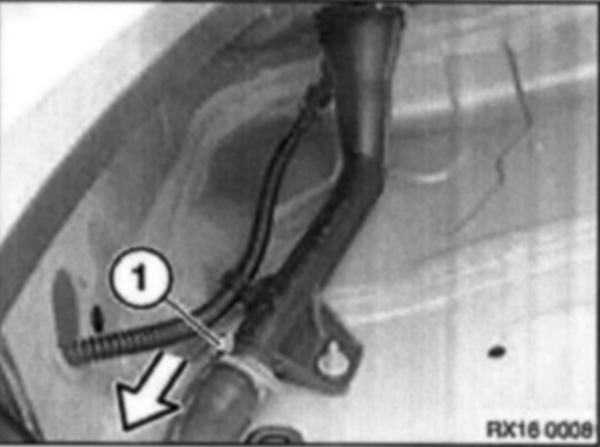

Release hose clip from fuel tank connection (1) and remove hose from fuel tank.
Tightening torque 2.5 - 3.5 Nm.

Install hint:
Replace hose clips.
Ensure hose is correctly seated on tank and filler neck.
