Accelerator Pedal: Service and Repair
Removing And Installing / Replacing Accelerator Pedal ModuleNote: Read out fault of EMS/DME control module, check stored fault memory, rectify faults, clear fault memory.
Turn off ignition.

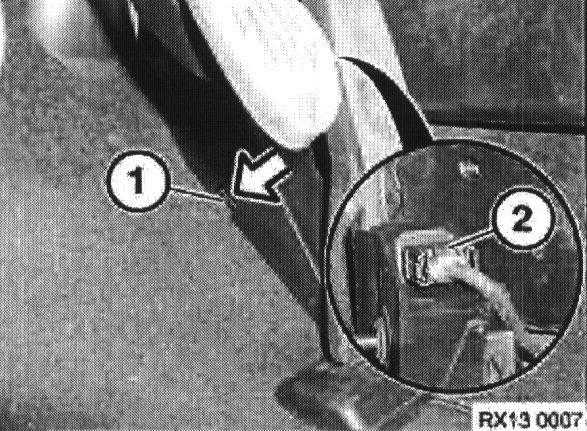

Move retaining lug (1) downwards and slide pedal assembly off retaining bracket.
Disconnect connector (2).
The pedal potentiometer is serviced as part of the pedal assembly.
Warning: Always replace disassembled adaptor plate with a new part. Retaining clips of old part can be damaged and adaptor plate can slide out of steel plate. This means there is a risk of accident!

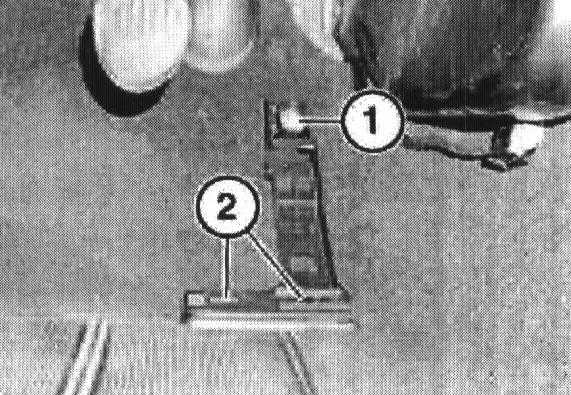

Should the pedal retaining bracket require replacing, remove fixing bolt (1).
- Pedal bracket to floor 21 Nm
Move both retaining lugs (2).
Remove retaining bracket.
Note: Read out fault of EMS/DME control module, check stored fault memory, rectify faults, clear fault memory.
