Canister Vent Valve: Service and Repair

Replacing Tank Venting Valve

NOTE:
Interrogate fault memory of EMS2000 control module.
Rectify faults and clear fault memory.

Turn off ignition.

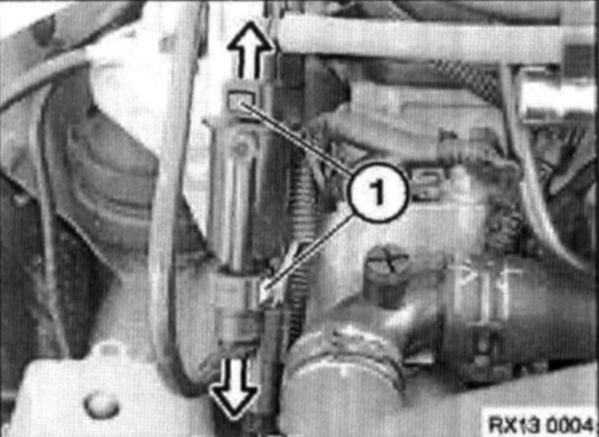

Disconnect both vent hoses, via quick fit connectors (1).

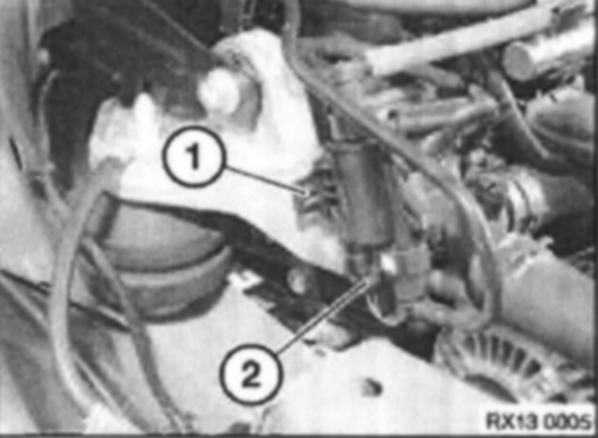

Straighten retaining tag (1) and slide vent valve off bracket.
Remove electrical connector (2).

NOTE:
Interrogate fault memory of EMS2000 control module.
Rectify faults and clear fault memory.
