FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mini
>>
2004
>>
Cooper S (R53) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Locking and Security Functions
>>
Antitheft Alarm System
>>
Antitheft Alarm System (As of 09/03 Up to 03/04)
Antitheft Alarm System (As of 09/03 Up to 03/04)

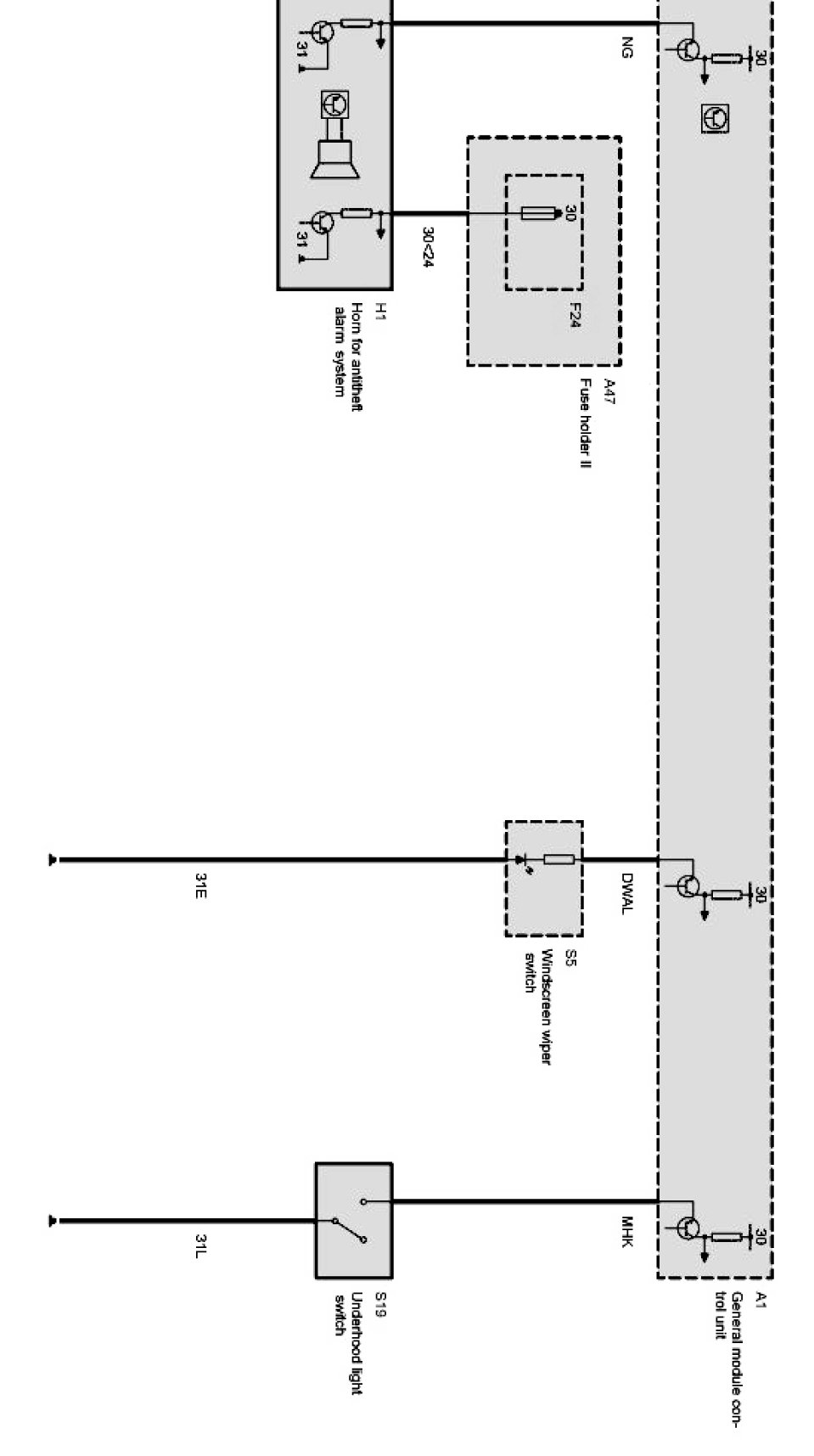

Antitheft alarm system Part 1:

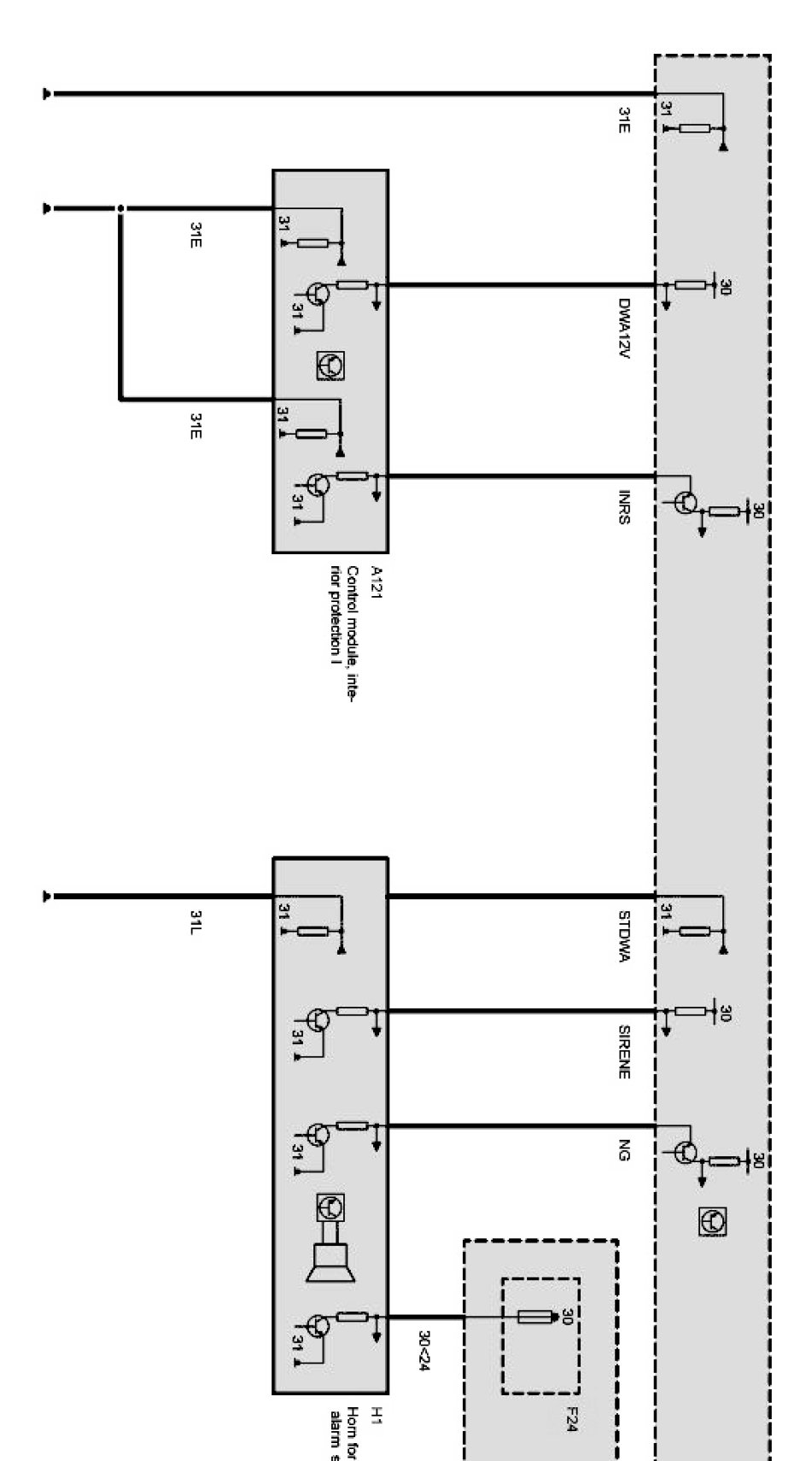

Antitheft alarm system Part 2:
