Tool # 23 1 340 Through Tool # 23 2 440

23 2 00 0 Rillex ball bearing extractor 6206





Note: 9 balls with steel cage - for removing deep groove ball bearing of transmission input shaft

Transmission: Getrag/ZF

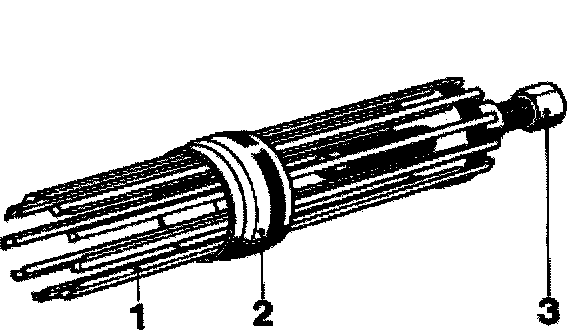

Order number: 23 2 00 0 Rillex ball bearing extractor 6206
Consisting of:
1 = 23 2 001 Claw for Rillex 6206 (9)
2 = 23 2 002 Union sleeve
3 = 23 2 003 Pressure spindle



23 2 010 Rillex ball bearing extractor 6206 E


23 2 490 Impact bush and slip sleeve
Minimum set: Mechanical tools





Note: For fitting rotary shaft seal on input shaft

Series: R50, R53
Transmission: GS5 65BH, S6S 420G, S6S 560G
Storage location: C29

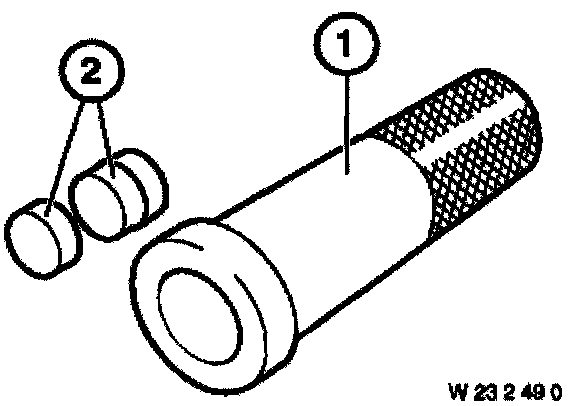

Order number:23 2 490 Impact bush and slip sleeve
Consisting of:
1 =23 2 491 Impact bush
2 =23 2 492 Slip sleeve (2-part)
