Replacing Rubber Mount For Transmission Mounting

Replacing Rubber Mount For Transmission Mounting
Special tools required:
^ 00 0 201
^ 00 0 202
^ 00 0 205
^ 00 0 207
^ 00 0 209
^ 11 8 260

Remove battery box.

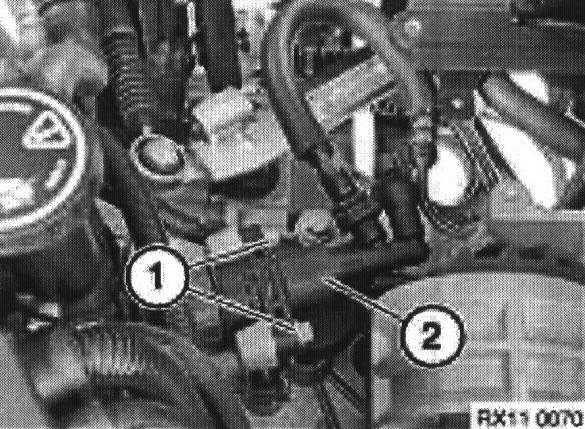

Remove clutch slave cylinder fixings (1) and remove slave cylinder (2) from gearbox bracket.
Slave cylinder to bracket
M8 24 Nm

Fit engine support bridge to vehicle.





Use special tools 00 0 201, 00 0 202, 00 0 205, 00 0 207, 00 0 209 and 11 8 260

Tighten support bridge sufficiently to support engine and gearbox weight.

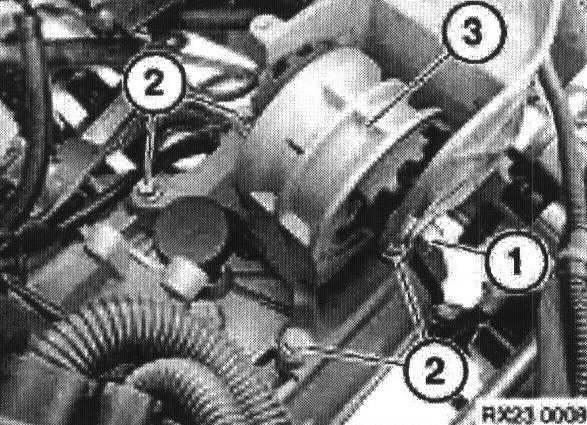

Remove gearbox mount retaining bolt (1) to upper bracket and retaining bolts (2) to gearbox.

Remove gearbox mount (3).
Gearbox mount retaining bolt to upper bracket 66 Nm
Mount bracket to gearbox 38 Nm
