Removing and Refitting or Replacing Oil Cooler (ECVT)

Special Tools Required:
^ 13 5 281
^ 13 5 282

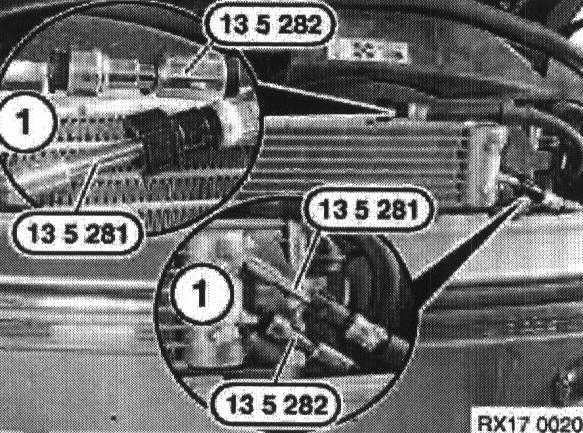

Disconnect pipes (1) from oil cooler and connect special tools 13 5 281 and 13 5 282

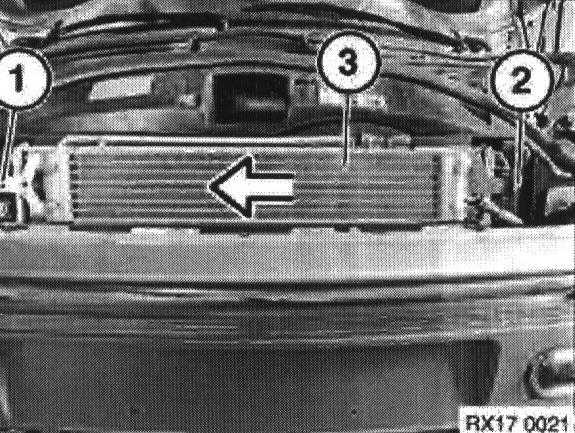

Remove bolt (1) and remove from mounting (2) in direction shown.

Remove oil cooler (3).
Oil cooler to radiator 4 Nm

Note: Check gearbox oil level, if the oil cooler has been replaced or drained.
